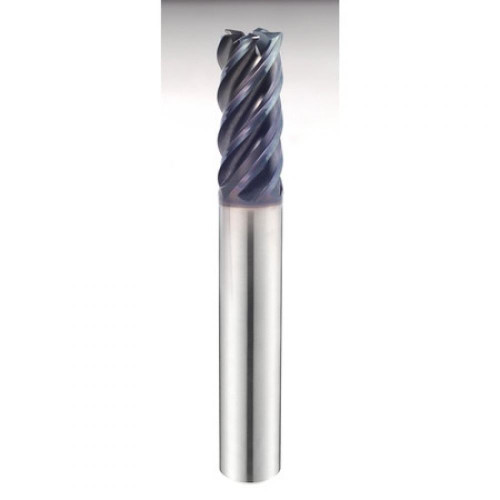

YG-1 Square End Mill: 1-1/4" Dia, 1-1/2" LOC, 4-1/2" OAL, 5 Flute, Y-Coating, UGMH12116

YG-1

No reviews yet Write a Review
SKU:
YG1-UGMH12116
$1,159.76

YG-1 square end mill for stainless steel and high-temp alloys, 5 flutes. Y-Coating. Manufacturer part number UGMH12116.

Specifications

Unit of Measure
Inch
Cutting Diameter (Fractional)
1-1/4
Length of Cut (Fractional)
1-1/2
Shank Diameter (Fractional)
1-1/4
Number of Flutes
5
Secondary Workpiece Material
Steel, Cast Iron
Overall Length (Fractional)
4-1/2
Size System
Fractional
Coating/Finish
Y-Coating
Length of Cut (Decimal)
1.5000
Length of Cut (Metric)
38.10
Shank Diameter (Decimal)
1.2500
Shank Diameter (Metric)
31.75
Overall Length (Decimal)
4.5000
Overall Length (Metric)
114.30
Workpiece Material
Stainless Steel, High-Temp Alloy
Cutting Diameter (Decimal)
1.2500
Cutting Diameter (Metric)
31.75
YG-1 Square End Mill: 1-1/4" Dia, 1-1/2" LOC, 4-1/2" OAL, 5 Flute, Y-Coating, UGMH12116
$1,159.76
