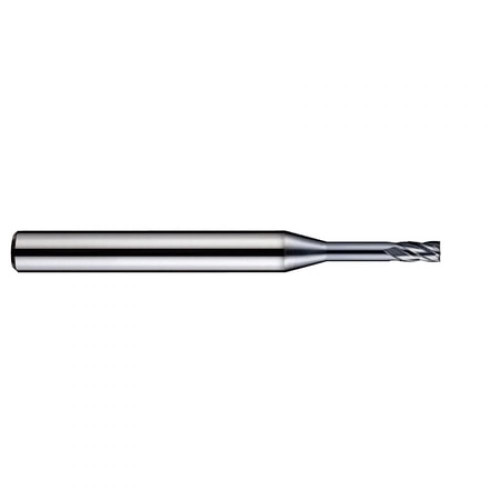

YG-1 Square End Mill: 1/2" Dia, 3/4" LOC, 4-1/4" OAL, 2" Reach, 4 Flute, Y-Coating, Solid Carbide, GMF28923

YG-1

No reviews yet Write a Review
SKU:
YG1-GMF28923
$307.09

YG-1 square end mill for steel and hardened steel, 4 flutes, straight shank. Solid carbide, Y-Coating. Manufacturer part number GMF28923.

Specifications

Unit of Measure
Inch
Cutting Diameter (Fractional)
1/2
Length of Cut (Fractional)
3/4
Shank Diameter (Fractional)
1/2
Number of Flutes
4
Shank Type
Straight
Overall Length (Fractional)
4-1/4
Size System
Fractional
Material
Solid Carbide
Coating/Finish
Y-Coating
Length of Cut (Decimal)
0.7500
Length of Cut (Metric)
19.05
Shank Diameter (Decimal)
0.5000
Shank Diameter (Metric)
12.70
Overall Length (Decimal)
4.2500
Overall Length (Metric)
107.95
Cutting Diameter (Decimal)
0.5000
Cutting Diameter (Metric)
12.70
Reach (Fractional)
2
Reach (Metric)
50.80
Reach (Decimal)
2.0000
Secondary Workpiece Material
Stainless Steel, Cast Iron
Workpiece Material
Steel, Hardened Steel
YG-1 Square End Mill: 1/2" Dia, 3/4" LOC, 4-1/4" OAL, 2" Reach, 4 Flute, Y-Coating, Solid Carbide, GMF28923
