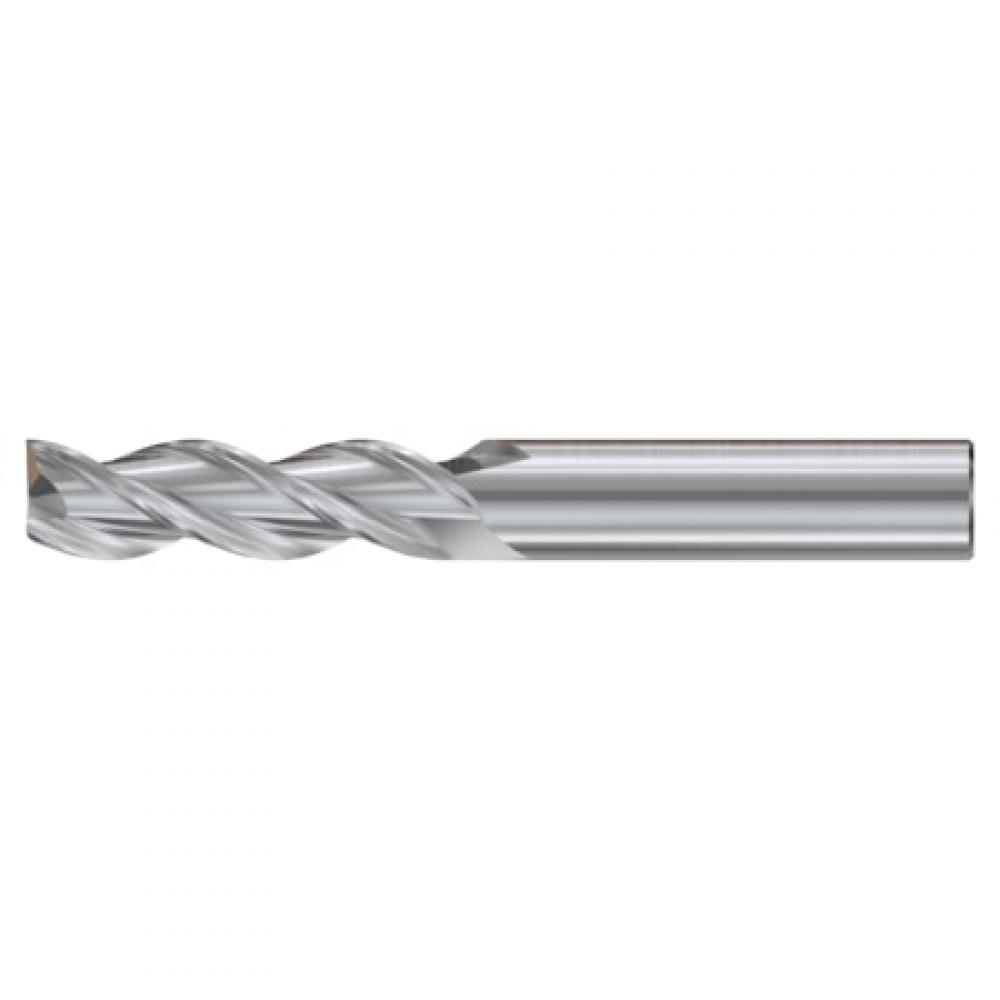

1/2 x 1/2 x 5/8 x 2-1/2 ALU-POWER HPC 3FL H-37 COATED END MILL

YG-1

No reviews yet Write a Review
SKU:
YG1-JAG95032
$116.14

Specifications

Unit of Measure
Inch
Cutting Diameter (Fractional)
1/2
Length of Cut (Fractional)
5/8
Shank Diameter (Fractional)
1/2
Number of Flutes
3
Center Cutting
Yes
Overall Length (Fractional)
2-1/2
Size System
Fractional
Workpiece Material
Non-Ferrous
Length of Cut (Decimal)
0.6250
Length of Cut (Metric)
15.88
Shank Diameter (Decimal)
0.5000
Shank Diameter (Metric)
12.70
Overall Length (Decimal)
2.5000
Overall Length (Metric)
63.50
Helix Angle
37 degrees
Cutting Diameter (Decimal)
0.5000
Cutting Diameter (Metric)
12.70
$116.14
Request a Quote

Buying in volume or need custom terms? Request a Quote.
