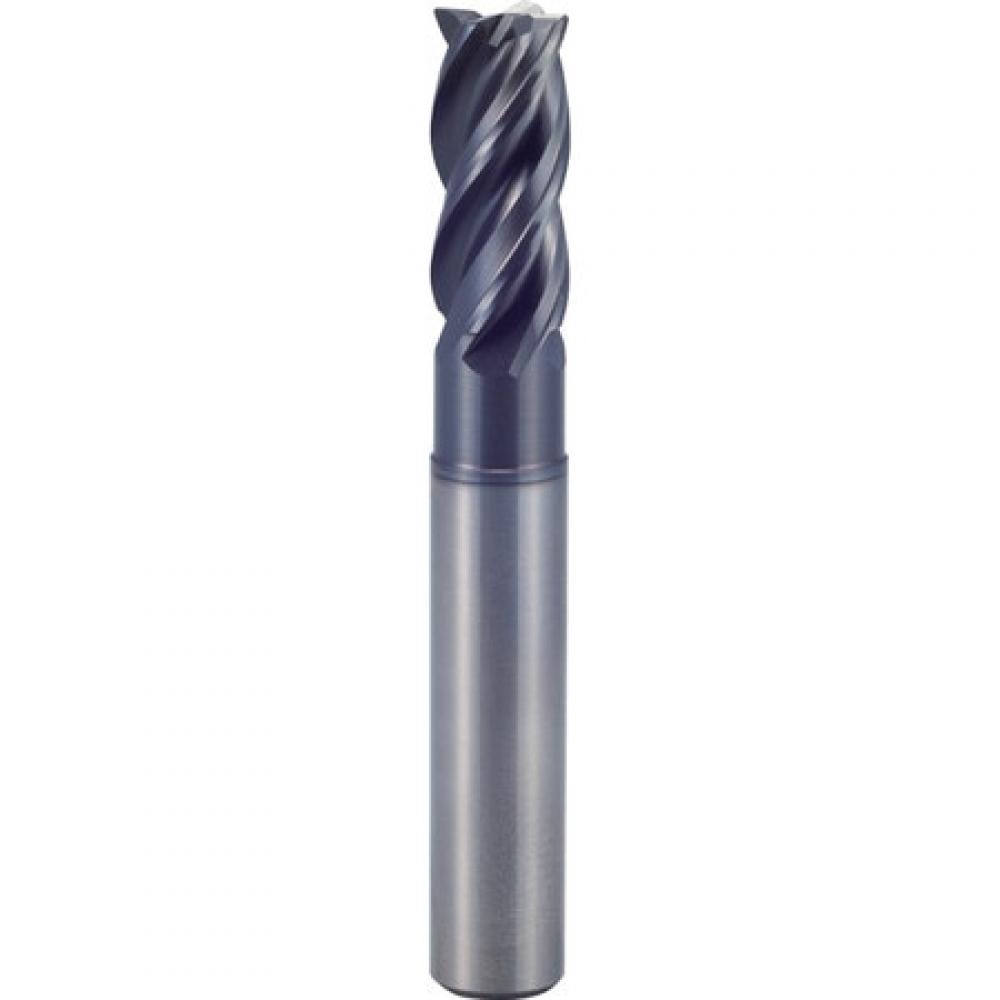

1/2 x 1/2 x 5/8 x 2-1/4 x 4 V7 PLUS A 4FL MULTI HELIX EXTENDED NECK BALL PLAIN SHANK END MILL

1/2 x 1/2 x 5/8 x 2-1/4 x 4 V7 PLUS A 4FL MULTI HELIX EXTENDED NECK BALL PLAIN SHANK END MILL

YG-1

No reviews yet Write a Review

SKU:: YG1-UGMH10910

$206.12

Specifications

Series

UGMH10

Unit of Measure

Fractional

Diameter

1/2 Inch

Length of Cut

5/8 Inch

Shank Size

1/2 Inch

Shank Type

Plain

Overall Length

4 Inch

Cutting Direction

Right

Material

Carbide

Coating/Finish

Y-Coating

Length of Cut (Decimal)

0.63

Length of Cut (Metric)

15.90

Shank Diameter (Decimal)

0.50

Shank Diameter (Metric)

12.70

Overall Length (Decimal)

Overall Length (Metric)

101.60

Helix Angle

36 degrees

Number of Flutes

Diameter (Decimal)

0.5

Workpiece Material

"High-Temp Alloy, Stainless Steel, Cast Iron, Steel"

Diameter (Metric)

12.70

Ball Nose Radius (Decimal)

0.25

Ball Nose Radius (Metric)

6.40

Ball Nose Radius (Fractional)

1/4

Cut Type

Center Cut

Length Below Shank (Decimal)

2.25

Length Below Shank (Metric)

57.20

Length Below Shank (Fractional)

2-1/4

$206.12
