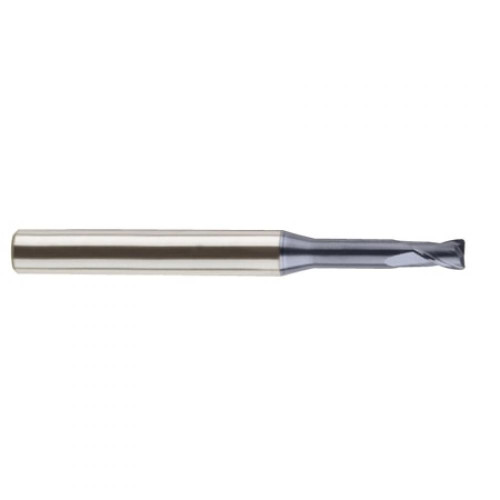

1/32 x 3/16 x 3/64(3/16) x 1-3/4 4G 2FL H-30 NECK END MILL

1/32 x 3/16 x 3/64(3/16) x 1-3/4 4G 2FL H-30 NECK END MILL

YG-1

No reviews yet Write a Review

SKU:: YG1-GMF22921

$60.01

Specifications

Unit of Measure

Fractional

Diameter

1/32 Inch

Length of Cut

3/64 Inch

Shank Size

3/16 Inch

Number Of Flutes

Shank Type

Plain

Overall Length

1-3/4 Inch

Cutting Direction

Right

Material

Carbide

Coating/Finish

ALCrN

Length of Cut (Decimal)

0.05

Length of Cut (Metric)

1.19

Shank Diameter (Decimal)

0.19

Shank Diameter (Metric)

4.76

Overall Length (Decimal)

1.75

Overall Length (Metric)

44.45

Diameter (Decimal)

0.04

Diameter (Metric)

0.79

Cut Type

Center Cut

Length Below Shank (Decimal)

0.19

Length Below Shank (Metric)

4.80

Length Below Shank (Fractional)

3/16

1/32 x 3/16 x 3/64(3/16) x 1-3/4 4G 2FL H-30 NECK END MILL

$60.01

Request a Quote

Buying in volume or need custom terms? Request a Quote.
