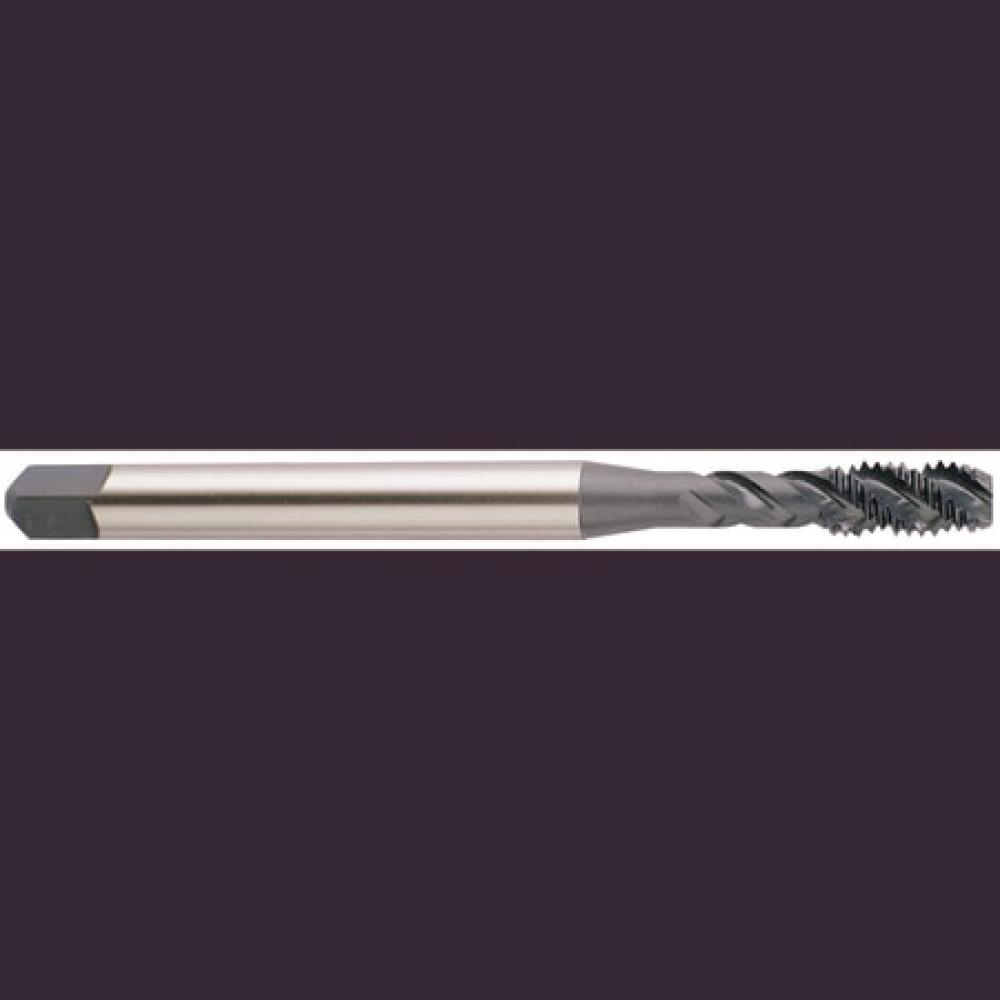

1/4-28 3FL SP FL BOTTOM G/T LONG SHANK HARDSLICK TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-H0423
$90.01

Specifications

Unit of Measure
Imperial
Diameter
0.25 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
6 Inch
Cutting Direction
Right
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.26
Shank Diameter (Metric)
6.48
Overall Length (Metric)
152.40
Neck Diameter (Decimal)
0.20
Neck Diameter (Metric)
5.08
Diameter (Metric)
6.35
Thread Standard
UNF
Thread Size
1/4
Depth Of Cut
2.50 x D
Thread Limit
H3
Chamfer
Modified Bottoming
Thread Pitch
28
Blank Standard
302A
Chamfer Length
2P-3P
Connection (Decimal)
0.26 x 0.20
Connection (Metric)
6.48 x 4.85
Drill Size (Decimal)
0.22
Drill Size (Metric)
5.53
Square Length (Decimal)
0.31
Square Length (Metric)
7.87
Square Size (Decimal)
0.20
Square Size 2 (Decimal)
0.31
Square Size (Metric)
4.85
Square Size 2 (Metric)
7.87
Thread Length (Decimal)
0.36
Thread Length (Metric)
8.99
Useable Length (Decimal)
1
Useable Length (Metric)
25.40
1/4-28 3FL SP FL BOTTOM G/T LONG SHANK HARDSLICK TAP
$90.01
