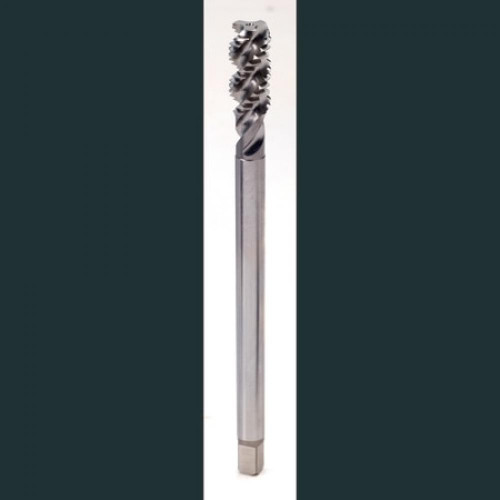

YG-1 Spiral Flute Tap: 1/4-28, H3, 3 Flute, TiN, T8D02423

YG-1

No reviews yet Write a Review
SKU:
YG1-T8D02423
$76.48

YG-1 spiral flute tap for steel, 50 degree helix, square shank. TiN coating. Manufacturer part number T8D02423.

Specifications

Unit of Measure
Inch
Workpiece Material
Steel
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
6.0000
Coating/Finish
TiN
Shank Diameter (Decimal)
0.2550
Shank Diameter (Metric)
6.48
Overall Length (Metric)
152.40
Helix Angle
50 degrees
Performance Class
General Purpose
Thread Standard
UNF
Thread Size
1/4-28
LxD Ratio
2.5xD
Thread Limit
H3
Thread Pitch (TPI)
28
Secondary Workpiece Material
Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Decimal)
0.2175
Square Length (Decimal)
0.3100
Square Length (Metric)
7.87
Square Size (Decimal)
0.1910
Square Size (Metric)
4.85
Thread Length (Decimal)
0.5910
Thread Length (Metric)
15.01
Usable Length (Decimal)
1.0000
Usable Length (Metric)
25.40
YG-1 Spiral Flute Tap: 1/4-28, H3, 3 Flute, TiN, T8D02423
$76.48
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
