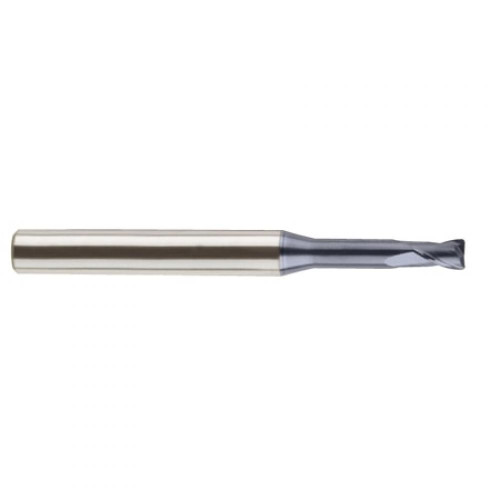

1/4 x 1/4 x 3/8(5/8) x 2-3/8 4G 2FL H-30 NECK END MILL

1/4 x 1/4 x 3/8(5/8) x 2-3/8 4G 2FL H-30 NECK END MILL

YG-1

No reviews yet Write a Review

SKU:: YG1-GMF22016

$79.25

Specifications

Unit of Measure

Inch

Cutting Diameter (Fractional)

1/4

Length of Cut (Fractional)

3/8

Shank Diameter (Fractional)

1/4

Number of Flutes

Shank Type

Straight

Overall Length (Fractional)

2-3/8

Reach (Fractional)

5/8

Material

Solid Carbide

Coating/Finish

Y-Coating

Length of Cut (Decimal)

0.3750

Length of Cut (Metric)

9.53

Shank Diameter (Decimal)

0.2500

Shank Diameter (Metric)

6.35

Overall Length (Decimal)

2.3750

Overall Length (Metric)

60.33

Helix Angle

30 degrees

Cutting Diameter (Decimal)

0.2500

Cutting Diameter (Metric)

6.35

Reach (Metric)

15.88

Size System

Fractional

Reach (Decimal)

0.6250

Secondary Workpiece Material

Stainless Steel, Cast Iron

Workpiece Material

Steel, Hardened Steel

1/4 x 1/4 x 3/8(5/8) x 2-3/8 4G 2FL H-30 NECK END MILL

$79.25

Request a Quote

Buying in volume or need custom terms? Request a Quote.
