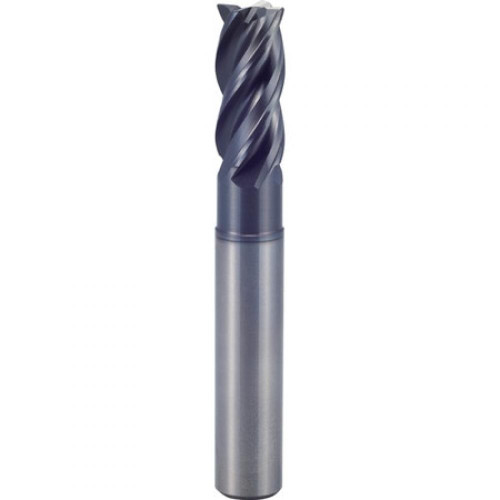

YG-1 Square End Mill: 1/4" Dia, 3/8" LOC, 4" OAL, 2-1/8" Reach, 4 Flute, Y-Coating, UGMF72902

YG-1

No reviews yet Write a Review
SKU:
YG1-UGMF72902
$68.21

YG-1 square end mill for steel, stainless steel and cast iron, 4 flutes, straight shank. Y-Coating. Manufacturer part number UGMF72902.

Specifications

Unit of Measure
Inch
Cutting Diameter (Fractional)
1/4
Length of Cut (Fractional)
3/8
Shank Diameter (Fractional)
1/4
Number of Flutes
4
Shank Type
Straight
Overall Length (Fractional)
4
Reach (Fractional)
2-1/8
Coating/Finish
Y-Coating
Length of Cut (Decimal)
0.3750
Length of Cut (Metric)
9.53
Shank Diameter (Decimal)
0.2500
Shank Diameter (Metric)
6.35
Overall Length (Decimal)
4.0000
Overall Length (Metric)
101.60
Reach (Metric)
53.98
Cutting Diameter (Decimal)
0.2500
Cutting Diameter (Metric)
6.35
Secondary Workpiece Material
High-Temp Alloy
Size System
Fractional
Reach (Decimal)
2.1250
Workpiece Material
Steel, Stainless Steel, Cast Iron
YG-1 Square End Mill: 1/4" Dia, 3/8" LOC, 4" OAL, 2-1/8" Reach, 4 Flute, Y-Coating, UGMF72902
$68.21
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
