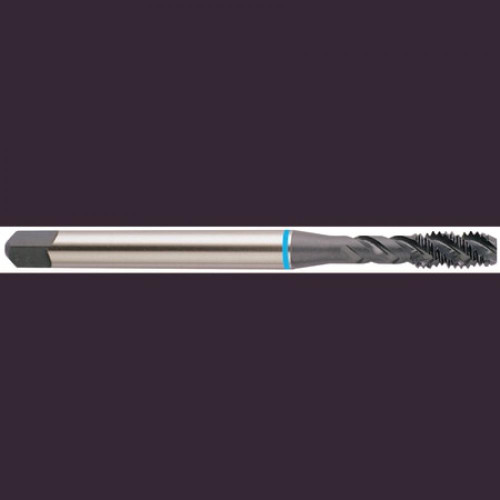

YG-1 Spiral Flute Tap: 1/4-20, H5, Modified Bottoming, 3 Flute, Hardslick, HSS, BK405

YG-1

No reviews yet Write a Review
SKU:
YG1-BK405
$54.87

YG-1 spiral flute tap for steel and stainless steel, 40 degree helix, modified bottoming chamfer, square shank. HSS, Hardslick coating. Manufacturer part number BK405.

Specifications

Unit of Measure
Inch
Workpiece Material
Steel, Stainless Steel
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
3.1500
Material
HSS
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.2550
Shank Diameter (Metric)
6.48
Overall Length (Metric)
80.01
Helix Angle
40 degrees
Thread Standard
UNC
Thread Size
1/4-20
LxD Ratio
2.5xD
Thread Limit
H5
Chamfer
Modified Bottoming
Thread Pitch (TPI)
20
Blank Standard
DIN/ANSI
Chamfer Length
2P-3P
Secondary Workpiece Material
Non-Ferrous
Ring Color
Blue
Square Length (Decimal)
0.3100
Square Length (Metric)
7.87
Square Size (Decimal)
0.1910
Square Size (Metric)
4.85
Thread Length (Decimal)
0.4330
Thread Length (Metric)
11.00
Usable Length (Decimal)
1.0000
Usable Length (Metric)
25.40
YG-1 Spiral Flute Tap: 1/4-20, H5, Modified Bottoming, 3 Flute, Hardslick, HSS, BK405
$54.87
