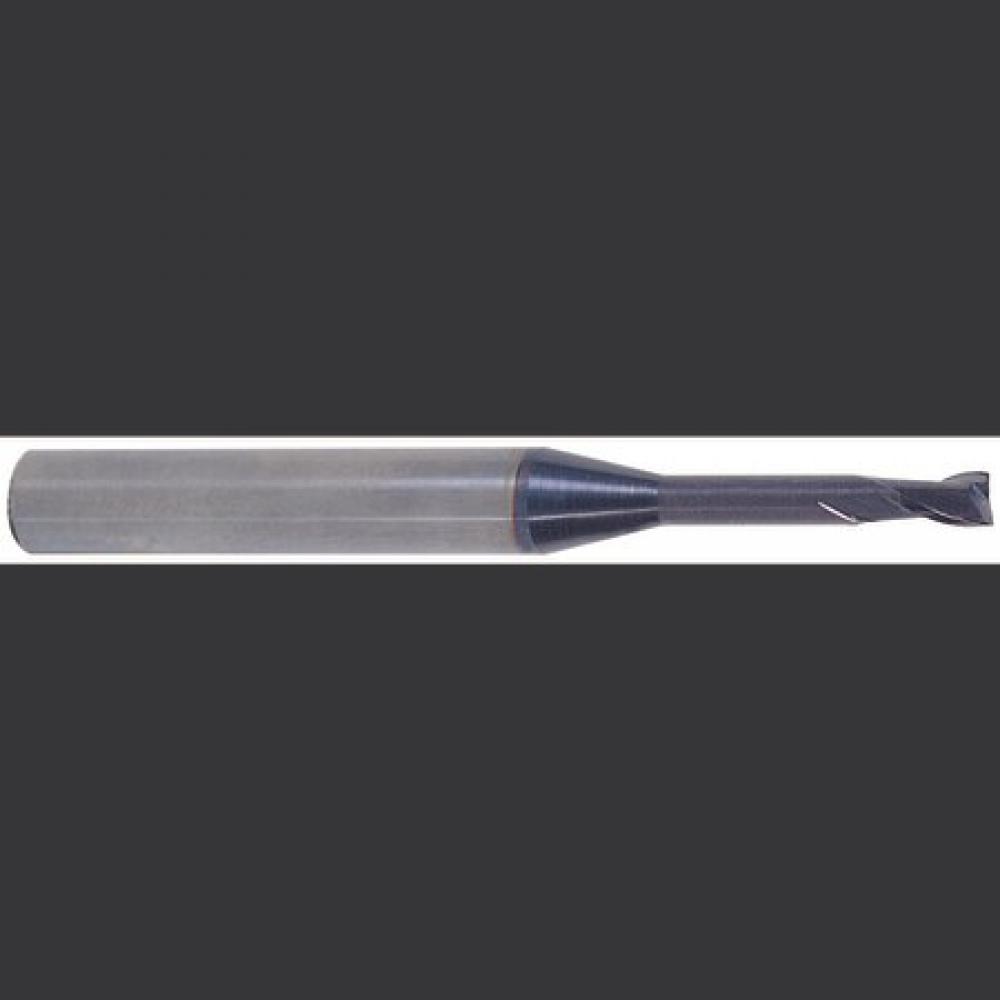

1.5 x 4 x E16 x N1.41 2FL H-30 REG X-POWER METRIC BALL FOR RIP PROCESSSING

YG-1

No reviews yet Write a Review
SKU:
YG1-EM886907
$84.50

Specifications

Series
EM886
Unit of Measure
Metric
Diameter
1.50 mm
Length of Cut
2.30 mm
Shank Size
4 mm
Shank Type
Plain
Overall Length
50 mm
Cutting Direction
Right
Material
Carbide
Coating/Finish
AlTiN
Length of Cut (Decimal)
0.09
Length of Cut (Fractional)
1/11
Shank Diameter (Decimal)
0.16
Shank Diameter (Fractional)
3/19
Overall Length (Decimal)
1.97
Overall Length (Fractional)
1-31/32
Neck Diameter (Decimal)
0.06
Neck Diameter (Metric)
1.41
Number of Flutes
2
Diameter (Decimal)
0.06
Neck Diameter (Fractional)
1/18
Workpiece Material
Steel
Diameter (Fractional)
1/17
Ball Nose Radius (Decimal)
0.03
Ball Nose Radius (Metric)
0.75
Ball Nose Radius (Fractional)
1/34
Cut Type
Center Cut
Length Below Shank (Decimal)
0.63
Length Below Shank (Metric)
16
Length Below Shank (Fractional)
17/27
$84.50
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
