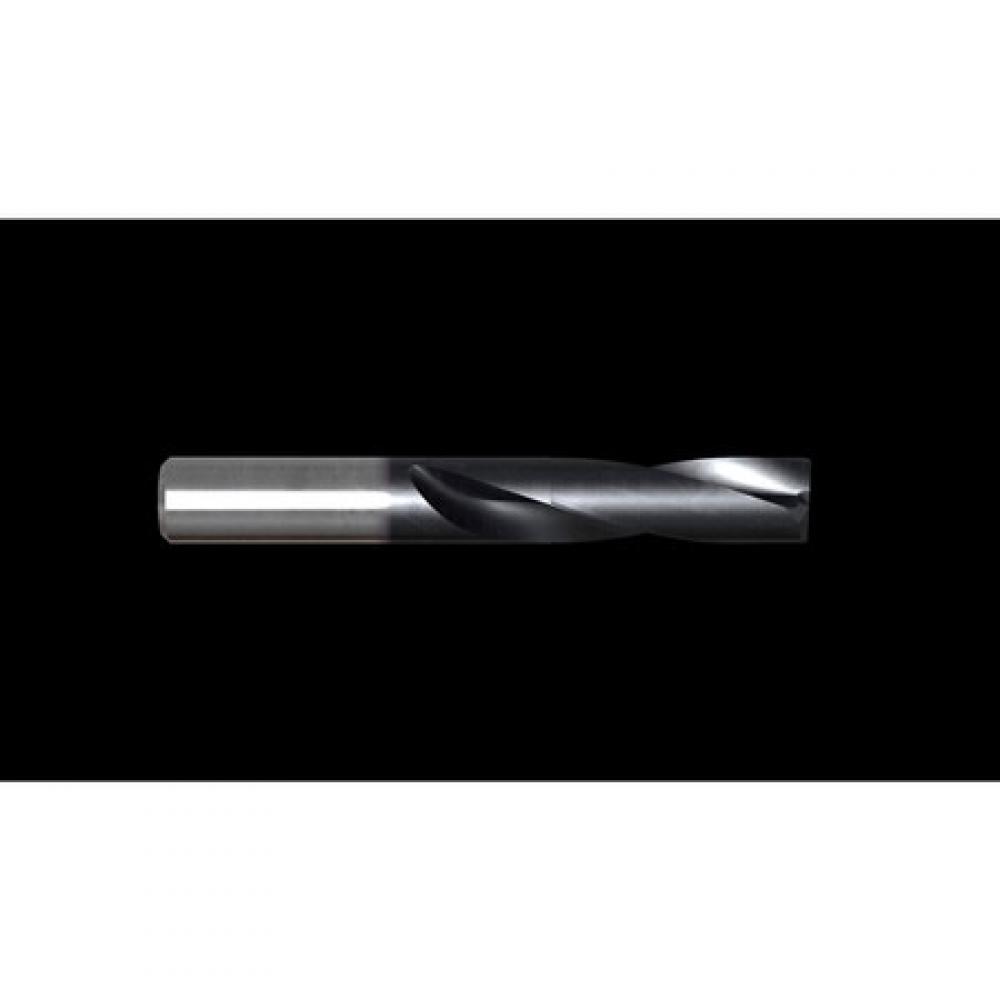

1/8 x 6 x 16 x 50 DREAM DRILL FLAT BOTTOM W/O COOLANT HOLE (2XD)

YG-1

No reviews yet Write a Review
SKU:
YG1-DPP447008F
$69.60

Specifications

Unit of Measure
Metric
Diameter
3.18 mm
Shank Size
6 mm
Overall Length
50 mm
Cutting Direction
Right
Material
Carbide
Shank Diameter (Decimal)
0.24
Shank Diameter (Fractional)
13/55
Overall Length (Decimal)
1.97
Overall Length (Fractional)
1-31/32
Type
Flat Bottom
Point Angle
180 degrees
Flute Length (Decimal)
0.63
Flute Length (Fractional)
17/27
Flute Length
16 mm
Length Of Cut
2
Diameter (Decimal)
0.13
Through Coolant
No
Workpiece Material
"Steel, Cast Iron"
Diameter (Fractional)
1/8
Hole Tolerance
H7
Shank Tolerance
H6
1/8 x 6 x 16 x 50 DREAM DRILL FLAT BOTTOM W/O COOLANT HOLE (2XD)
$69.60
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
