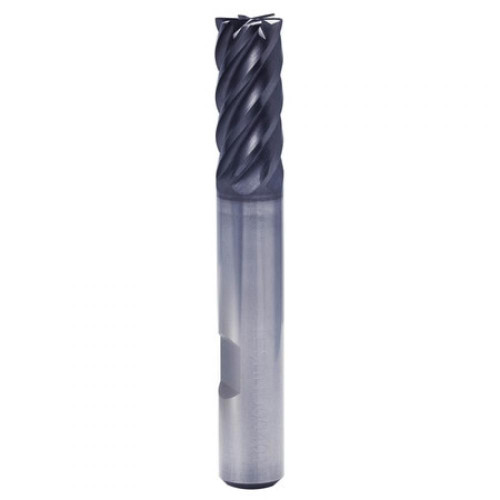

YG-1 Square End Mill: 1" Dia, 1-1/2" LOC, 4" OAL, 6 Flute, Y-Coating, UGMG21064

YG-1

No reviews yet Write a Review
SKU:
YG1-UGMG21064
$681.43

YG-1 square end mill for steel, stainless steel and cast iron, 6 flutes, 45 degree helix, Weldon flat shank. Y-Coating. Manufacturer part number UGMG21064.

Specifications

Unit of Measure
Inch
Cutting Diameter (Fractional)
1
Length of Cut (Fractional)
1-1/2
Shank Diameter (Fractional)
1
Number of Flutes
6
Shank Type
Weldon Flat
Overall Length (Fractional)
4
Size System
Fractional
Coating/Finish
Y-Coating
Length of Cut (Decimal)
1.5000
Length of Cut (Metric)
38.10
Shank Diameter (Decimal)
1.0000
Shank Diameter (Metric)
25.40
Overall Length (Decimal)
4.0000
Overall Length (Metric)
101.60
Helix Angle
45 degrees
Cutting Diameter (Decimal)
1.0000
Cutting Diameter (Metric)
25.40
Secondary Workpiece Material
High-Temp Alloy
Workpiece Material
Steel, Stainless Steel, Cast Iron
YG-1 Square End Mill: 1" Dia, 1-1/2" LOC, 4" OAL, 6 Flute, Y-Coating, UGMG21064
$681.43
