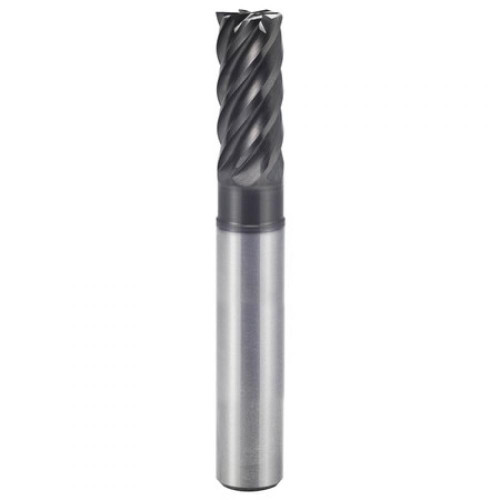

YG-1 Square End Mill: 1" Dia, 1-1/4" LOC, 8" OAL, 5-1/4" Reach, 6 Flute, Y-Coating, UGMH08918

YG-1

No reviews yet Write a Review
SKU:
YG1-UGMH08918
$1,088.92

YG-1 square end mill for steel, stainless steel and cast iron, 6 flutes, 45 degree helix. Y-Coating. Manufacturer part number UGMH08918.

Specifications

Unit of Measure
Inch
Cutting Diameter (Fractional)
1
Length of Cut (Fractional)
1-1/4
Shank Diameter (Fractional)
1
Number of Flutes
6
Reach (Metric)
133.35
Overall Length (Fractional)
8
Reach (Fractional)
5-1/4
Coating/Finish
Y-Coating
Length of Cut (Decimal)
1.2500
Length of Cut (Metric)
31.75
Shank Diameter (Decimal)
1.0000
Shank Diameter (Metric)
25.40
Overall Length (Decimal)
8.0000
Overall Length (Metric)
203.20
Helix Angle
45 degrees
Cutting Diameter (Decimal)
1.0000
Cutting Diameter (Metric)
25.40
Secondary Workpiece Material
High-Temp Alloy
Size System
Fractional
Reach (Decimal)
5.2500
Workpiece Material
Steel, Stainless Steel, Cast Iron
YG-1 Square End Mill: 1" Dia, 1-1/4" LOC, 8" OAL, 5-1/4" Reach, 6 Flute, Y-Coating, UGMH08918
$1,088.92
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
