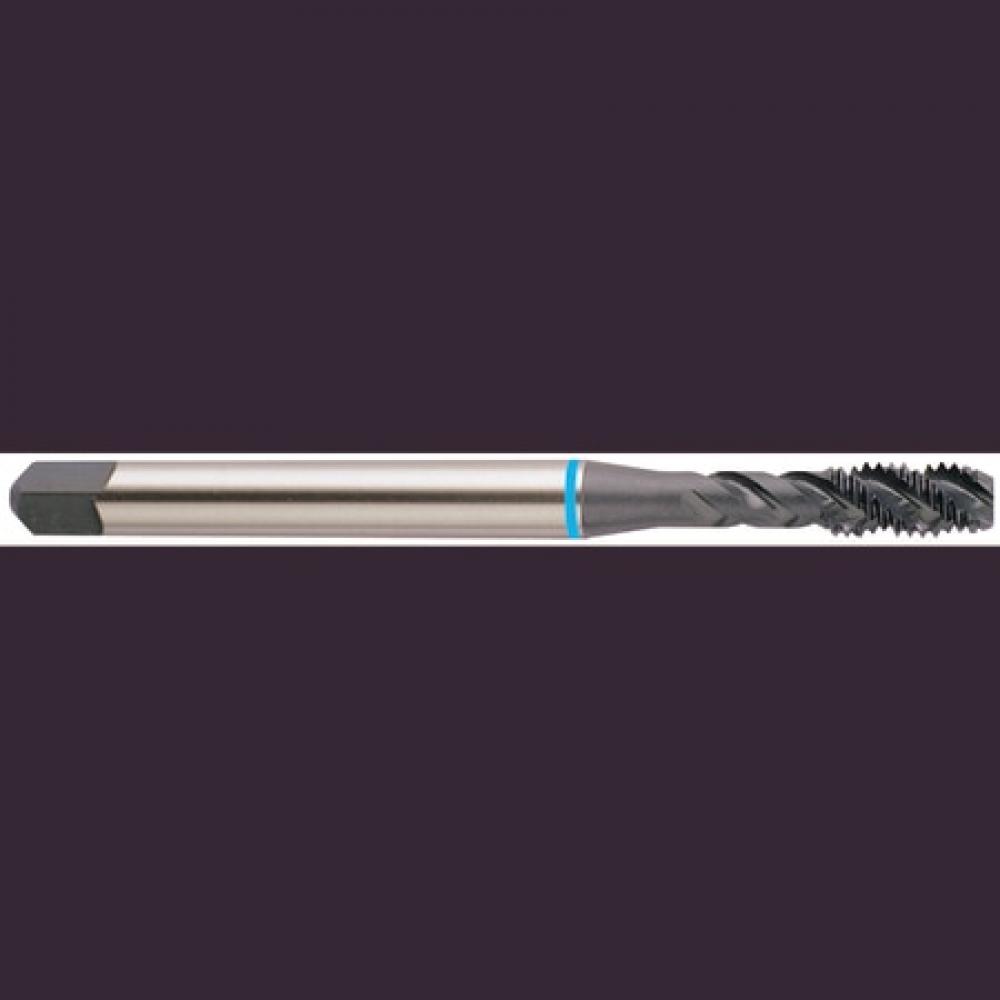

YG-1 Spiral Flute Tap: 1-12, H6, Modified Bottoming, 4 Flute, Hardslick, G2806

YG-1

No reviews yet Write a Review
SKU:
YG1-G2806
$210.50

YG-1 spiral flute tap for steel, 45 degree helix, modified bottoming chamfer, square shank. Hardslick coating. Manufacturer part number G2806.

Specifications

Unit of Measure
Inch
Secondary Workpiece Material
Stainless Steel, Cast Iron, Non-Ferrous
Number of Flutes
4
Shank Type
Square
Overall Length (Decimal)
5.5120
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.8000
Shank Diameter (Metric)
20.32
Overall Length (Metric)
140.00
Helix Angle
45 degrees
Performance Class
General Purpose
Workpiece Material
Steel
Thread Standard
UNF
Thread Size
1-12
LxD Ratio
2.5xD
Thread Limit
H6
Chamfer
Modified Bottoming
Thread Pitch (TPI)
12
Blank Standard
DIN/ANSI
Chamfer Length
2P-3P
Square Length (Decimal)
0.8100
Square Length (Metric)
20.57
Square Size (Decimal)
0.6000
Square Size (Metric)
15.24
Thread Length (Decimal)
1.5000
Thread Length (Metric)
38.10
Usable Length (Decimal)
2.5000
Usable Length (Metric)
63.50
