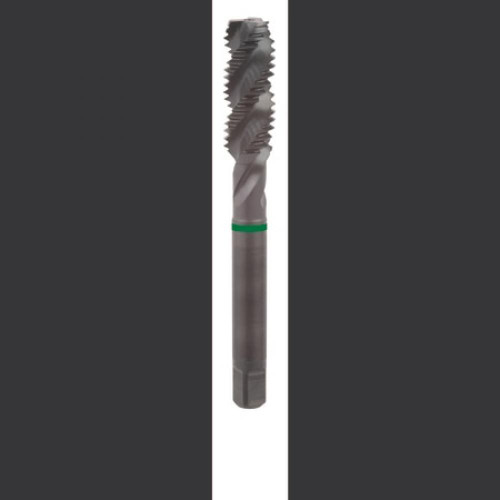

10 - 24, H3 HSS-PM COMBO MODI SP FL TAP STEAM OXIDE STAINLESS STEEL

YG-1

No reviews yet Write a Review
SKU:
YG1-TCA323S
$32.95

Specifications

Unit of Measure
Imperial
Diameter
0.19 Inch
Shank Type
Square
Overall Length
2.38 Inch
Cutting Direction
Right
Material
HSS
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.20
Shank Diameter (Metric)
4.93
Overall Length (Metric)
60.45
Helix Angle
45 degrees
Neck Diameter (Decimal)
0.14
Neck Diameter (Metric)
3.33
Through Coolant
No
Diameter (Metric)
4.83
Thread Standard
UNC
Thread Size
#10
Depth Of Cut
2.50 x D
Thread Limit
H3
Chamfer
Modified Bottoming
Thread Pitch
24
Blank Standard
302A
Chamfer Length
2P-3P
Connection (Decimal)
0.20 x 0.16
Connection (Metric)
4.93 x 3.86
Drill Size (Decimal)
0.16
Drill Size (Metric)
3.86
Ring Color
Green
Square Length (Decimal)
0.25
Square Length (Metric)
6.35
Square Size (Decimal)
0.16
Square Size 2 (Decimal)
0.25
Square Size (Metric)
3.86
Square Size 2 (Metric)
6.35
Thread Length (Decimal)
0.36
Thread Length (Metric)
8.99
Useable Length (Decimal)
0.91
Useable Length (Metric)
23.01
10 - 24, H3 HSS-PM COMBO MODI SP FL TAP STEAM OXIDE STAINLESS STEEL
$32.95
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
