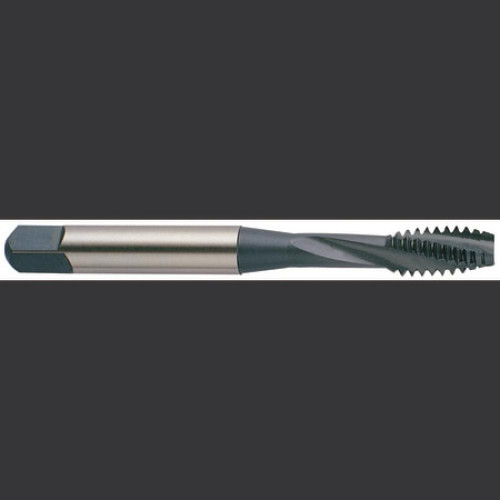

YG-1 Spiral Flute Tap: #10-32, H3, Modified Bottoming, 3 Flute, TiCN, H7343

YG-1

No reviews yet Write a Review
SKU:
YG1-H7343
$38.20

YG-1 spiral flute tap for steel, 15 degree helix, modified bottoming chamfer, square shank. TiCN coating. Manufacturer part number H7343.

Specifications

Unit of Measure
Inch
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.3740
Coating/Finish
TiCN
Shank Diameter (Decimal)
0.1940
Shank Diameter (Metric)
4.93
Overall Length (Metric)
60.30
Helix Angle
15 degrees
Workpiece Material
Steel
Thread Standard
UNF
Thread Size
#10-32
LxD Ratio
2.5xD
Thread Limit
H3
Chamfer
Modified Bottoming
Thread Pitch (TPI)
32
Blank Standard
302A
Chamfer Length
2P-3P
Drill Size (Metric)
4.10
Square Length (Decimal)
0.2500
Square Length (Metric)
6.35
Square Size (Decimal)
0.1520
Square Size (Metric)
3.86
Thread Length (Decimal)
0.2760
Thread Length (Metric)
7.01
Usable Length (Decimal)
0.9060
Usable Length (Metric)
23.01
YG-1 Spiral Flute Tap: #10-32, H3, Modified Bottoming, 3 Flute, TiCN, H7343
$38.20
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
