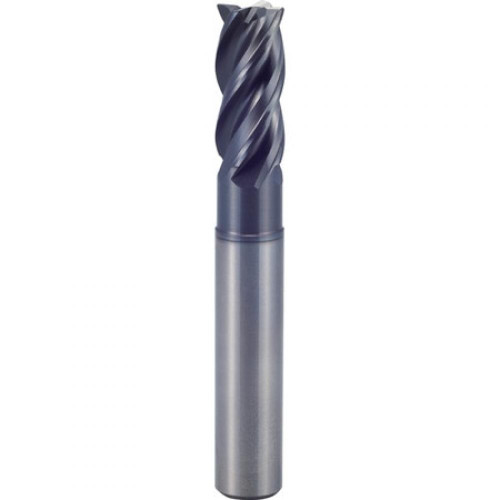

10 x 10 x 14(35) x 82 V7 PLUS 4FL MULTI HELIX REG END MILL

YG-1

No reviews yet Write a Review
SKU:
YG1-GMF60913
$144.21

Specifications

Unit of Measure
Metric
Diameter
10 mm
Length of Cut
14 mm
Shank Size
10 mm
Number Of Flutes
4
Shank Type
Plain
Overall Length
82 mm
Cutting Direction
Right
Coating/Finish
Y-Coating
Length of Cut (Decimal)
0.56
Length of Cut (Fractional)
43/78
Shank Diameter (Decimal)
0.40
Shank Diameter (Fractional)
37/94
Overall Length (Decimal)
3.23
Overall Length (Fractional)
3-8/35
Helix Angle
36 degrees
Diameter (Decimal)
0.40
Diameter (Fractional)
37/94
Cut Type
Center Cut
Length Below Shank (Decimal)
1.38
Length Below Shank (Metric)
35
Length Below Shank (Fractional)
1-17/45
10 x 10 x 14(35) x 82 V7 PLUS 4FL MULTI HELIX REG END MILL
$144.21
