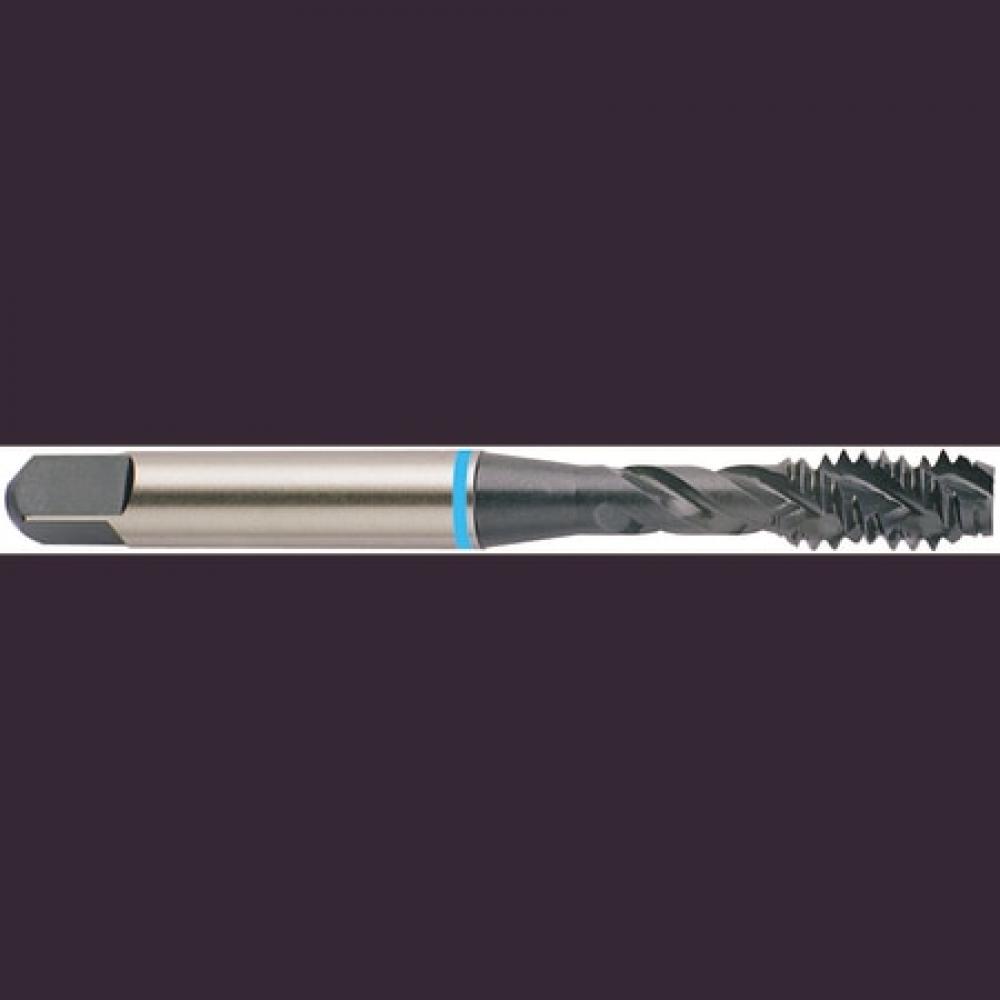

10 x 24, H5 3FL SP FL MODI BOTTOM SUPER HSS TAP STEAM OXIDE

YG-1

No reviews yet Write a Review
SKU:
YG1-BB325
$27.27

Specifications

Unit of Measure
Imperial
Diameter
0.19 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
2.38 Inch
Cutting Direction
Right
Material
HSS
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.20
Shank Diameter (Metric)
4.90
Overall Length (Metric)
60.50
Helix Angle
40 degrees
Neck Diameter (Decimal)
0.14
Neck Diameter (Metric)
3.33
Workpiece Material
Steel
Diameter (Metric)
4.83
Thread Standard
UNC
Thread Size
#10
Depth Of Cut
2.50 x D
Thread Limit
H5
Chamfer
Modified Bottoming
Thread Pitch
24
Blank Standard
302A
Chamfer Length
2P-3P
Connection (Decimal)
0.20 x 0.16
Connection (Metric)
4.93 x 3.86
Drill Size (Decimal)
0.16
Drill Size (Metric)
3.86
Ring Color
Blue
Square Length (Decimal)
0.25
Square Length (Metric)
6.40
Square Size (Decimal)
0.16
Square Size 2 (Decimal)
0.25
Square Size (Metric)
3.86
Square Size 2 (Metric)
6.40
Thread Length (Decimal)
0.36
Thread Length (Metric)
9
Useable Length (Decimal)
0.91
Useable Length (Metric)
23.01
10 x 24, H5 3FL SP FL MODI BOTTOM SUPER HSS TAP STEAM OXIDE
$27.27
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
