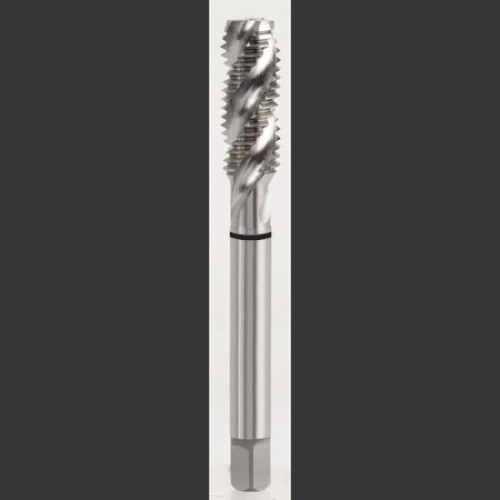

YG-1 Spiral Flute Tap: #12-24, H3, Bright/Uncoated, HSS, T7363

YG-1

No reviews yet Write a Review
SKU:
YG1-T7363
$18.02

YG-1 spiral flute tap for steel, stainless steel, cast iron and non-ferrous metals, 40 degree helix, square shank. HSS, bright/uncoated. Manufacturer part number T7363.

Specifications

Unit of Measure
Inch
Shank Type
Square
Overall Length (Decimal)
2.3740
Material
HSS
Coating/Finish
Bright/Uncoated
Shank Diameter (Decimal)
0.2200
Shank Diameter (Metric)
5.59
Overall Length (Metric)
60.30
Helix Angle
40 degrees
Thread Standard
UNC
Thread Size
#12-24
LxD Ratio
2.5xD
Thread Limit
H3
Thread Pitch (TPI)
24
Blank Standard
302A
Chamfer Length
1P-2P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Decimal)
0.1781
Drill Size (Metric)
4.52
Square Length (Decimal)
0.2800
Square Length (Metric)
7.11
Square Size (Decimal)
0.1650
Square Size (Metric)
4.19
Thread Length (Decimal)
0.3540
Thread Length (Metric)
8.99
Usable Length (Decimal)
0.9060
Usable Length (Metric)
23.01
YG-1 Spiral Flute Tap: #12-24, H3, Bright/Uncoated, HSS, T7363
$18.02
