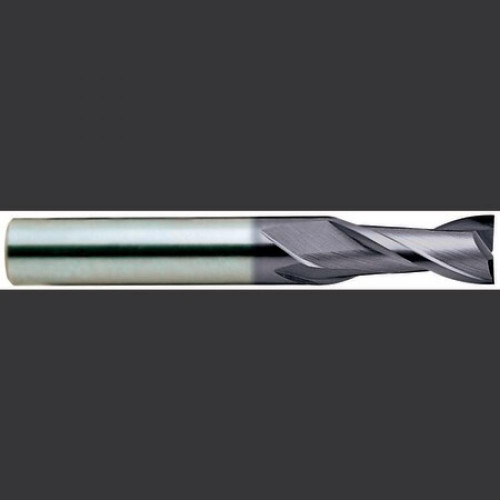

12 x 12 x 22 x 83 2FL LONG TIALN CARBIDE END MILL

YG-1

No reviews yet Write a Review
SKU:
YG1-EH527120
$155.19

Specifications

Unit of Measure
Metric
Diameter
12 mm
Length of Cut
22 mm
Shank Size
12 mm
Number Of Flutes
2
Shank Type
Plain
Overall Length
83 mm
Cutting Direction
Right
Coating/Finish
YG TiAIN F
Length of Cut (Decimal)
0.87
Length of Cut (Fractional)
13/15
Shank Diameter (Decimal)
0.48
Shank Diameter (Fractional)
43/91
Overall Length (Decimal)
3.27
Overall Length (Fractional)
3-19/71
Helix Angle
30 degrees
Diameter (Decimal)
0.48
Diameter (Fractional)
43/91
Cut Type
Center Cut
12 x 12 x 22 x 83 2FL LONG TIALN CARBIDE END MILL
$155.19
