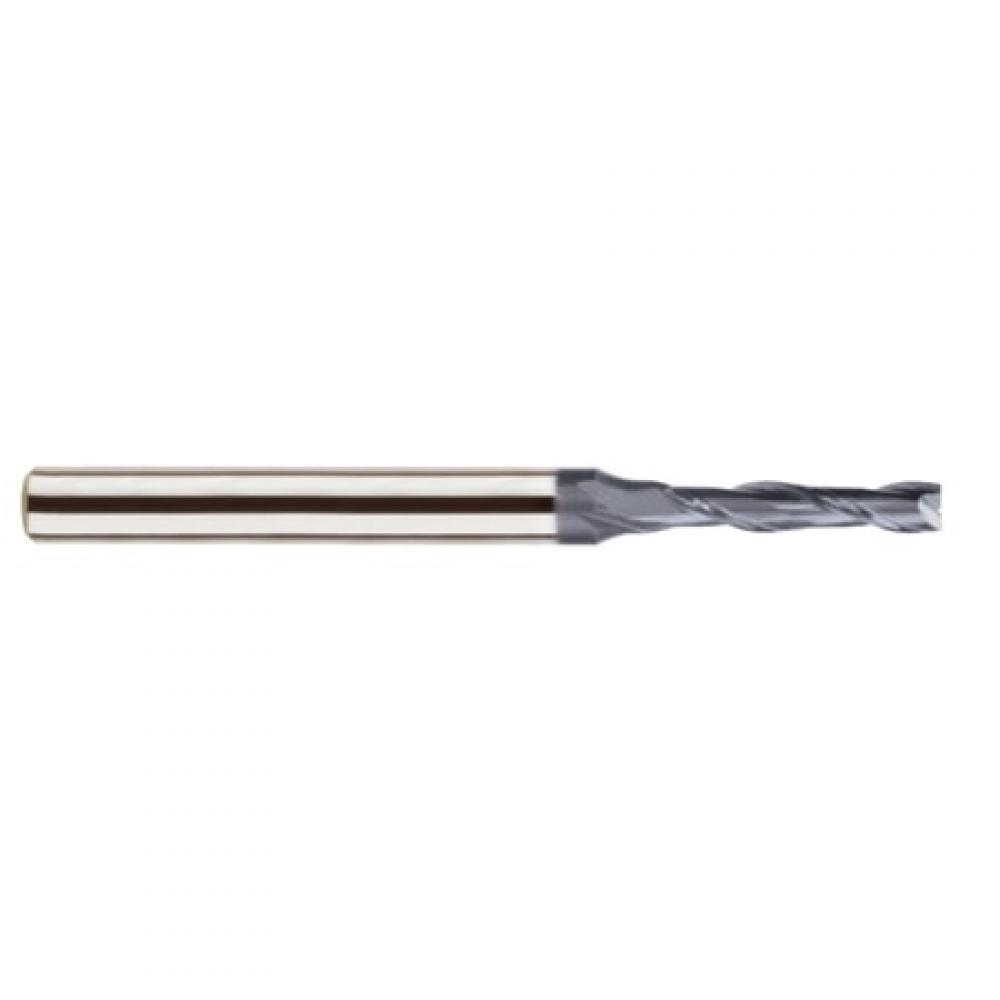

YG-1 Square End Mill: .120" Dia, 5/16" LOC, 2" OAL, 2 Flute, Y-Coating, Solid Carbide, GMF23927

YG-1

No reviews yet Write a Review
SKU:
YG1-GMF23927
$33.44

YG-1 square end mill for steel and hardened steel, 2 flutes, straight shank. Solid carbide, Y-Coating. Manufacturer part number GMF23927.

Specifications

Unit of Measure
Inch
Size System
Decimal
Length of Cut (Fractional)
5/16
Shank Diameter (Fractional)
3/16
Number of Flutes
2
Shank Type
Straight
Overall Length (Fractional)
2
Secondary Workpiece Material
Stainless Steel, Cast Iron
Material
Solid Carbide
Coating/Finish
Y-Coating
Length of Cut (Decimal)
0.3125
Length of Cut (Metric)
7.94
Shank Diameter (Decimal)
0.1875
Shank Diameter (Metric)
4.76
Overall Length (Decimal)
2.0000
Overall Length (Metric)
50.80
Cutting Diameter (Decimal)
0.1200
Cutting Diameter (Metric)
3.05
Workpiece Material
Steel, Hardened Steel
YG-1 Square End Mill: .120" Dia, 5/16" LOC, 2" OAL, 2 Flute, Y-Coating, Solid Carbide, GMF23927
$33.44
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
