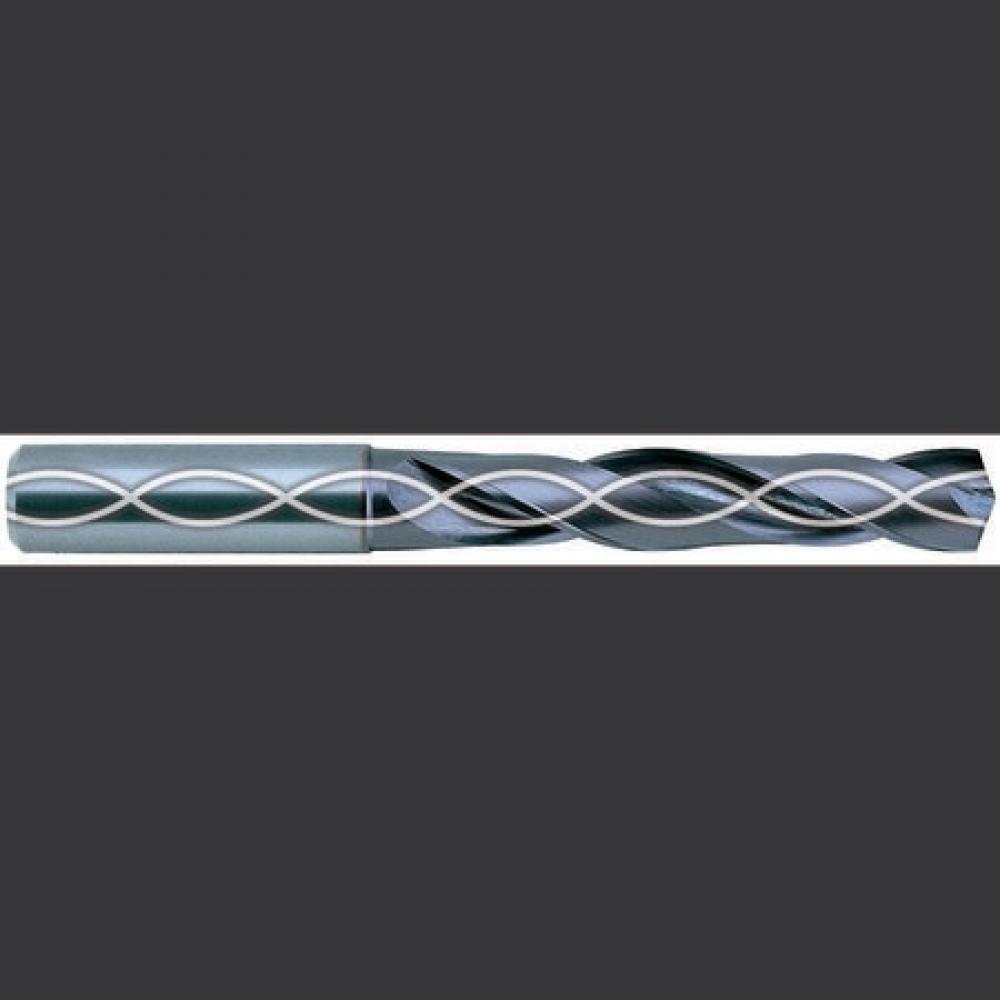

YG-1 Stub Drill: 14.288mm Dia, 65.00mm Flute Length, 115.00mm OAL, 140° Point, 3xD, Internal Coolant, Solid Carbide, DH451036F

YG-1

No reviews yet Write a Review
SKU:
YG1-DH451036F
$425.53

YG-1 stub drill for steel, stainless steel and non-ferrous metals, 140 degree point, internal coolant. Solid carbide, TiAlN coating. Manufacturer part number DH451036F.

Specifications

Unit of Measure
Metric
Cutting Diameter (Metric)
14.288
Shank Diameter (Metric)
16.00
Overall Length (Metric)
115.00
Material
Solid Carbide
Shank Diameter (Decimal)
0.6299
LxD Ratio
3xD
Overall Length (Decimal)
4.5276
Cutting Diameter Tolerance
m7
Type
Dream Drill INOX
Point Angle
140 degrees
Flute Length (Decimal)
2.5591
Coating/Finish
TiAlN
Flute Length (Metric)
65.00
Size System
Metric
Cutting Diameter (Decimal)
0.5625
Coolant Option
Internal Coolant
Workpiece Material
Steel, Stainless Steel, Non-Ferrous
Cutting Diameter (Fractional)
9/16
Secondary Workpiece Material
High-Temp Alloy
Shank Tolerance
h6
Blank Standard
DIN 6537
$425.53
