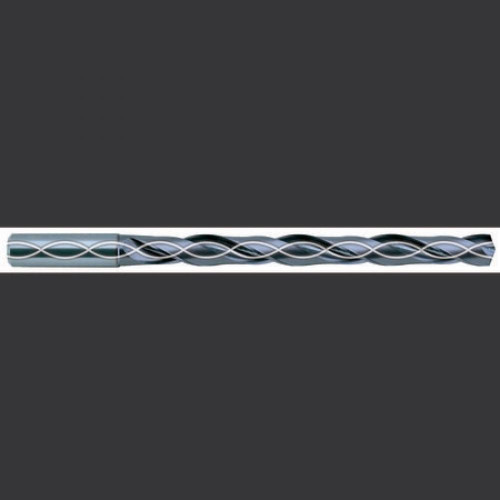

#21(4.039) x 6 x 43 x 81 CARBIDE DREAM DRILL W/ COOLANT (8XD)

YG-1

No reviews yet Write a Review
SKU:
YG1-DH421221G
$221.10

Specifications

Unit of Measure
Metric
Diameter
4.04 mm
Shank Size
6 mm
Overall Length
81 mm
Cutting Direction
Right
Material
Carbide
Shank Diameter (Decimal)
0.24
Shank Diameter (Fractional)
13/55
Overall Length (Decimal)
3.19
Overall Length (Fractional)
3-7/37
Helix Angle
30 degrees
Point Angle
140 degrees
Flute Length (Decimal)
1.70
Flute Length (Fractional)
1-9/13
Flute Length
43 mm
Point Length (Decimal)
0.03
Point Length (Metric)
0.73
Length Of Cut
8
Diameter (Decimal)
0.16
Through Coolant
Yes
Workpiece Material
Steel
Diameter (Fractional)
7/44
Drill Point Length (Decimal)
0.03
Drill Point Length (Metric)
0.73
Hole Tolerance
M7
Shank Tolerance
H6
Blank Standard
DIN 6537
Wire Size
#21
#21(4.039) x 6 x 43 x 81 CARBIDE DREAM DRILL W/ COOLANT (8XD)
$221.10
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
