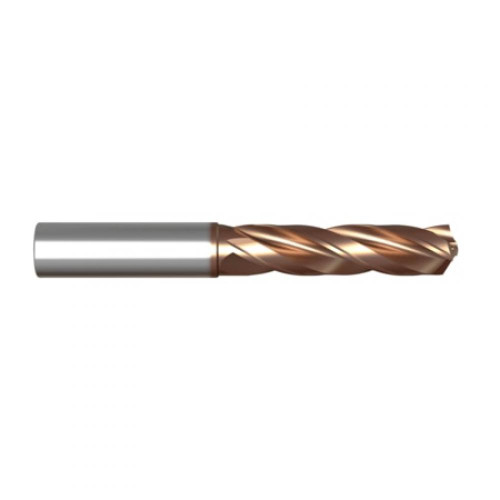

YG-1 Jobber Drill: 21/64" Dia, 2.4016" Flute Length, 4.0551" OAL, 140° Point, 5xD, Internal Coolant, Solid Carbide, DGR497021

YG-1

No reviews yet Write a Review
SKU:
YG1-DGR497021
$277.96

YG-1 jobber drill for steel and cast iron, 140 degree point, internal coolant. Solid carbide, H-Coating. Manufacturer part number DGR497021.

Specifications

Unit of Measure
Inch
Cutting Diameter (Metric)
8.33
Shank Diameter (Metric)
9.53
Overall Length (Metric)
103.00
Material
Solid Carbide
Shank Diameter (Decimal)
0.3750
Shank Diameter (Fractional)
3/8
Overall Length (Decimal)
4.0551
Coating/Finish
H-Coating
Type
High Feed
Point Angle
140 degrees
Flute Length (Decimal)
2.4016
LxD Ratio
5xD
Flute Length (Metric)
61.00
Size System
Fractional
Cutting Diameter (Decimal)
0.3281
Coolant Option
Internal Coolant
Workpiece Material
Steel, Cast Iron
Cutting Diameter (Fractional)
21/64
Cutting Diameter Tolerance
m7
Shank Tolerance
h6
Blank Standard
DIN 6537
YG-1 Jobber Drill: 21/64" Dia, 2.4016" Flute Length, 4.0551" OAL, 140° Point, 5xD, Internal Coolant, Solid Carbide, DGR497021
$277.96
