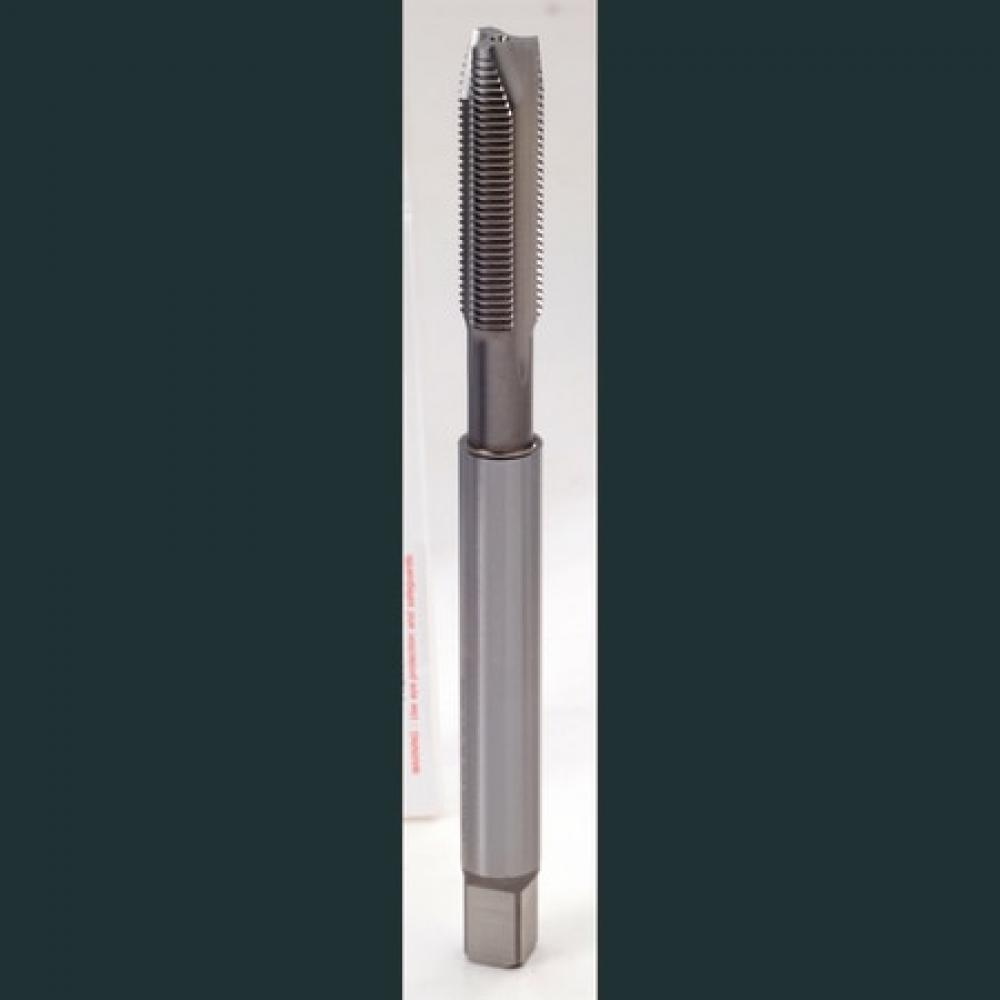

YG-1 Spiral Point Tap: 1/4-28, H3, Bottoming, 2 Flute, Bright/Uncoated, HSS, T7256423

YG-1

No reviews yet Write a Review
SKU:
YG1-T7256423
$16.34

YG-1 spiral point tap for steel, 2 flutes, bottoming chamfer, square shank. HSS, bright/uncoated. Manufacturer part number T7256423.

Specifications

Unit of Measure
Inch
Workpiece Material
Steel
Number of Flutes
2
Shank Type
Square
Overall Length (Decimal)
2.5000
Material
HSS
Coating/Finish
Bright/Uncoated
Shank Diameter (Decimal)
0.2550
Shank Diameter (Metric)
6.48
Overall Length (Metric)
63.50
Performance Class
General Purpose
Thread Standard
UNF
Thread Size
1/4-28
LxD Ratio
3xD
Thread Limit
H3
Chamfer
Bottoming
Thread Pitch (TPI)
28
Blank Standard
302
Chamfer Length
1.5P-2P
Secondary Workpiece Material
Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Decimal)
0.2175
Square Length (Decimal)
0.3100
Square Length (Metric)
7.87
Square Size (Decimal)
0.1910
Square Size (Metric)
4.85
Thread Length (Decimal)
1.0000
Thread Length (Metric)
25.40
Usable Length (Decimal)
1.3540
Usable Length (Metric)
34.39
YG-1 Spiral Point Tap: 1/4-28, H3, Bottoming, 2 Flute, Bright/Uncoated, HSS, T7256423
$16.34
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
