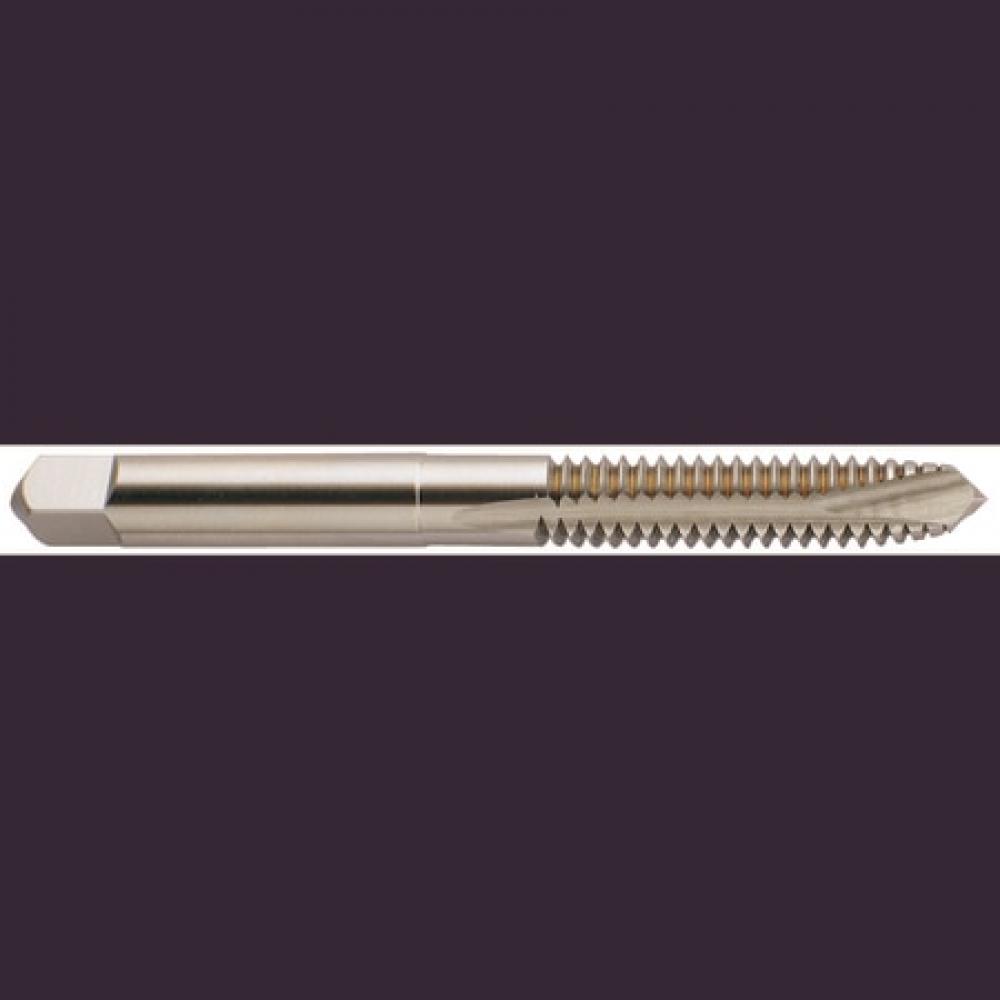

YG-1 Spiral Point Tap: M2 x 0.4, D3, Plug, 2 Flute, Steam Oxide, HSS, T6217133

YG-1

No reviews yet Write a Review
SKU:
YG1-T6217133
$38.29

YG-1 spiral point tap for steel, 2 flutes, plug chamfer, square shank. HSS, steam oxide finish. Manufacturer part number T6217133.

Specifications

Unit of Measure
Metric
Workpiece Material
Steel
Number of Flutes
2
Shank Type
Square
Overall Length (Decimal)
1.7520
Material
HSS
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.1410
Shank Diameter (Metric)
3.58
Overall Length (Metric)
44.50
Performance Class
General Purpose
Thread Standard
M
Thread Size
M2 x 0.4
LxD Ratio
3xD
Thread Limit
D3
Chamfer
Plug
Thread Pitch (mm)
0.40
Blank Standard
302
Chamfer Length
4P-5P
Secondary Workpiece Material
Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Metric)
1.64
Square Length (Decimal)
0.1900
Square Length (Metric)
4.83
Square Size (Decimal)
0.1100
Square Size (Metric)
2.79
Thread Length (Decimal)
0.3940
Thread Length (Metric)
10.01
