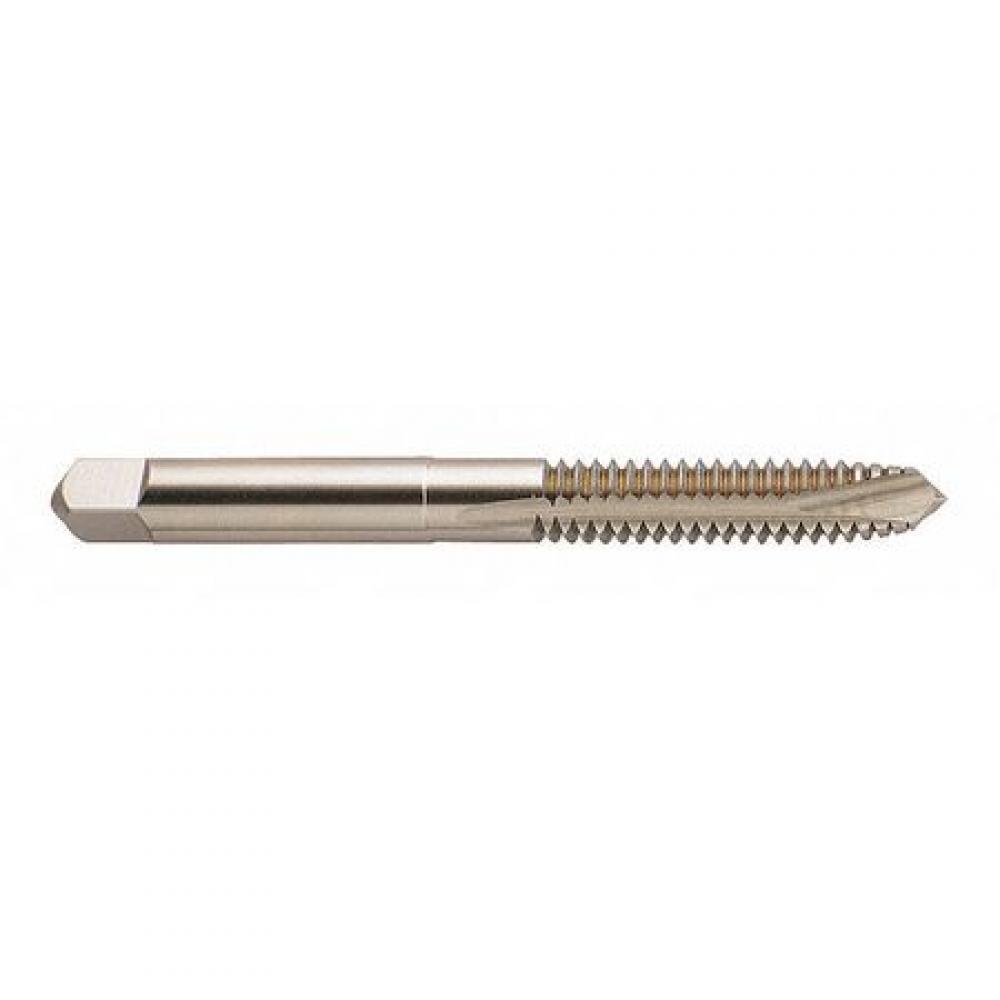

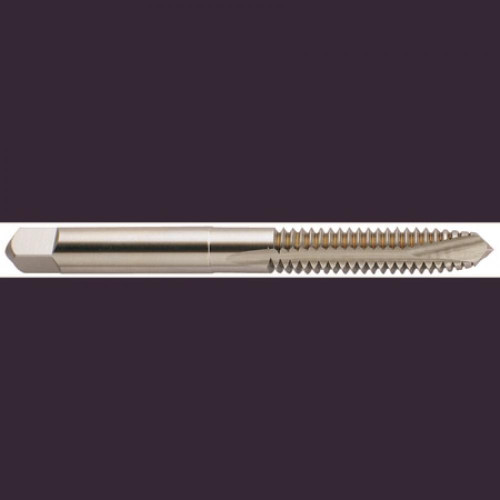

2FL SP PT TAP PLUG STANDARD BRIGHT

YG-1

No reviews yet Write a Review
SKU:
YG1-J0243
$11.02

Specifications

Unit of Measure
Imperial
Diameter
0.14 Inch
Number Of Flutes
2
Shank Type
Square
Overall Length
2 Inch
Cutting Direction
Right
Coating/Finish
Bright
Shank Diameter (Decimal)
0.15
Shank Diameter (Metric)
3.58
Overall Length (Metric)
50.80
Type
General Purpose
Through Coolant
No
Diameter (Metric)
3.51
Thread Standard
UNC
Thread Size
#6
Depth Of Cut
3 x D
Thread Limit
H3
Chamfer
Plug
Thread Pitch
32
Blank Standard
302
Chamfer Length
4P-5P
Connection (Decimal)
0.15 x 0.11
Connection (Metric)
3.58 x 2.79
Drill Size (Decimal)
0.11
Drill Size (Metric)
2.78
Square Length (Decimal)
0.19
Square Length (Metric)
4.83
Square Size (Decimal)
0.11
Square Size 2 (Decimal)
0.19
Square Size (Metric)
2.79
Square Size 2 (Metric)
4.83
Thread Length (Decimal)
0.69
Thread Length (Metric)
17.53
Useable Length (Decimal)
0.69
Useable Length (Metric)
17.53
2FL SP PT TAP PLUG STANDARD BRIGHT
$11.02
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
