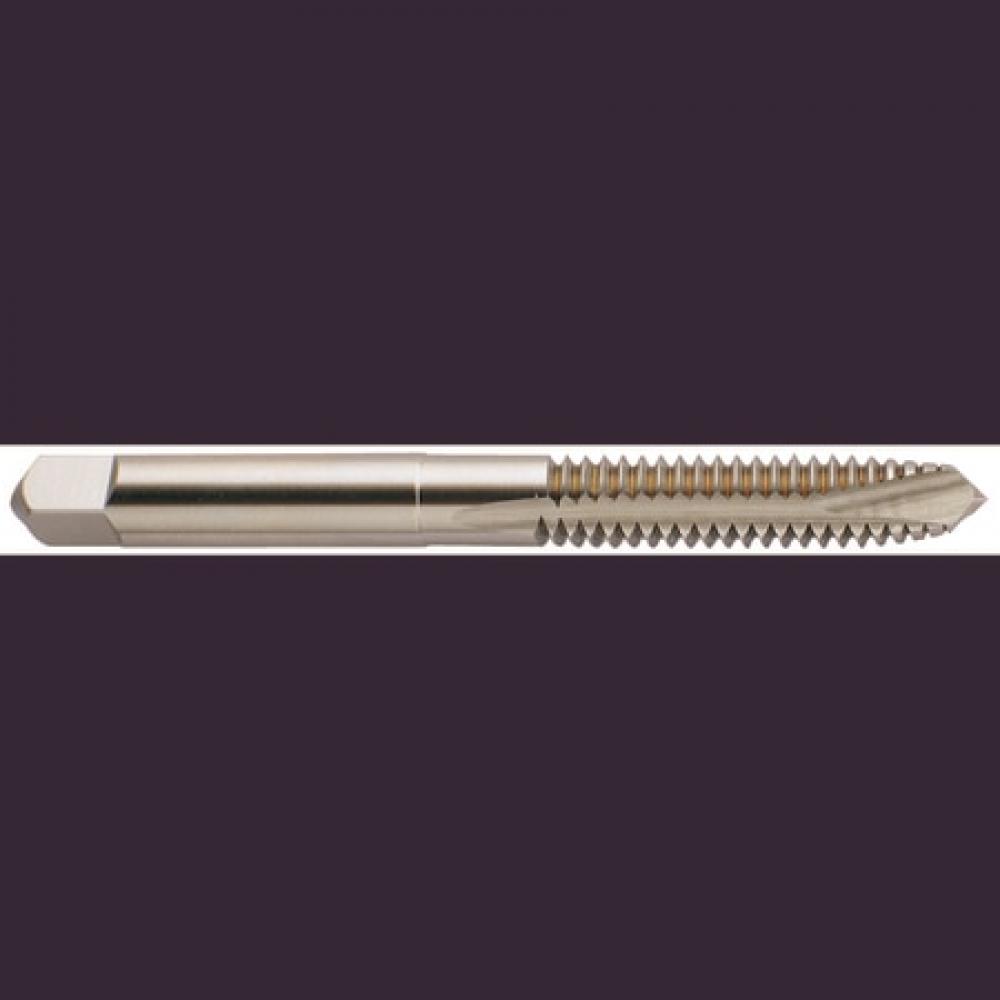

2FL SP PT TAP PLUG STANDARD TiN COATED

YG-1

No reviews yet Write a Review
SKU:
YG1-J1343
$17.50

Specifications

Unit of Measure
Inch
Workpiece Material
Steel
Number of Flutes
2
Shank Type
Square
Overall Length (Decimal)
2.3740
Coating/Finish
TiN
Shank Diameter (Decimal)
0.1940
Shank Diameter (Metric)
4.93
Overall Length (Metric)
60.30
Performance Class
General Purpose
Thread Standard
UNF
Thread Size
#10-32
LxD Ratio
3xD
Thread Limit
H3
Chamfer
Plug
Thread Pitch (TPI)
32
Blank Standard
302
Chamfer Length
4P-5P
Secondary Workpiece Material
Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Metric)
4.10
Square Length (Decimal)
0.2500
Square Length (Metric)
6.35
Square Size (Decimal)
0.1520
Square Size (Metric)
3.86
Thread Length (Decimal)
0.9060
Thread Length (Metric)
23.01
Usable Length (Decimal)
1.2200
Usable Length (Metric)
30.99
2FL SP PT TAP PLUG STANDARD TiN COATED
$17.50
