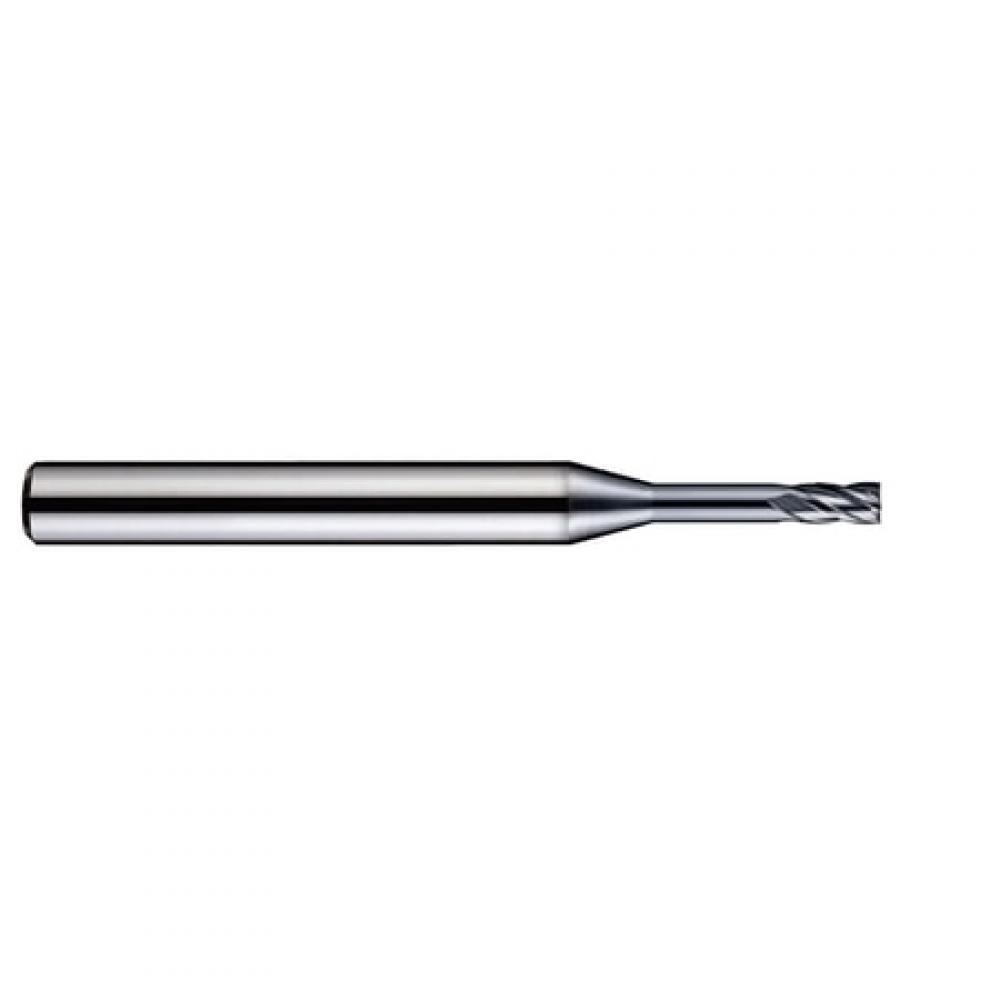

YG-1 Square End Mill: 3/16" Dia, 1/4" LOC, 2-3/4" OAL, 1-3/16" Reach, 4 Flute, Y-Coating, Solid Carbide, GMF28917

YG-1

No reviews yet Write a Review
SKU:
YG1-GMF28917
$101.06

YG-1 square end mill for steel and hardened steel, 4 flutes, straight shank. Solid carbide, Y-Coating. Manufacturer part number GMF28917.

Specifications

Unit of Measure
Inch
Cutting Diameter (Fractional)
3/16
Length of Cut (Fractional)
1/4
Shank Diameter (Fractional)
1/4
Number of Flutes
4
Shank Type
Straight
Overall Length (Fractional)
2-3/4
Reach (Fractional)
1-3/16
Material
Solid Carbide
Coating/Finish
Y-Coating
Length of Cut (Decimal)
0.2500
Length of Cut (Metric)
6.35
Shank Diameter (Decimal)
0.2500
Shank Diameter (Metric)
6.35
Overall Length (Decimal)
2.7500
Overall Length (Metric)
69.85
Cutting Diameter (Decimal)
0.1875
Cutting Diameter (Metric)
4.76
Reach (Metric)
30.16
Size System
Fractional
Reach (Decimal)
1.1875
Secondary Workpiece Material
Stainless Steel, Cast Iron
Workpiece Material
Steel, Hardened Steel
YG-1 Square End Mill: 3/16" Dia, 1/4" LOC, 2-3/4" OAL, 1-3/16" Reach, 4 Flute, Y-Coating, Solid Carbide, GMF28917
$101.06
