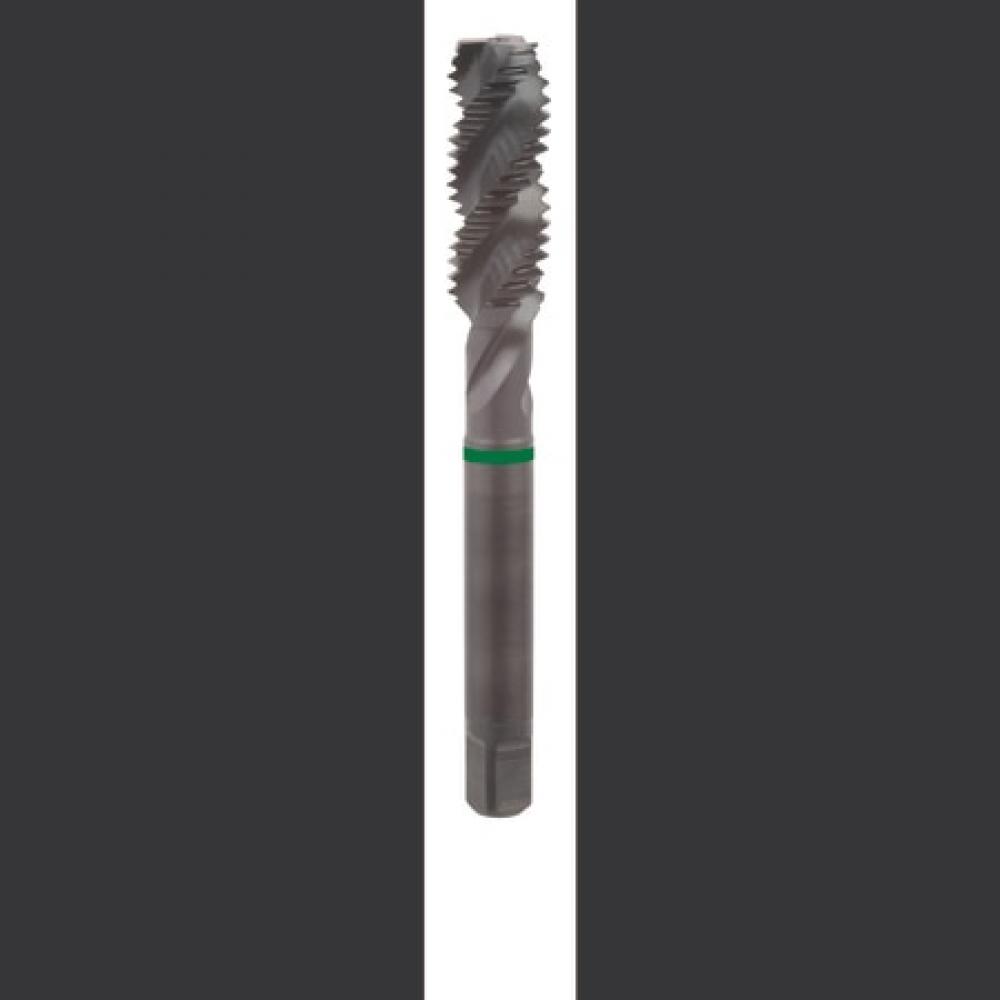

YG-1 Spiral Flute Tap: 3/4-16, H3, Steam Oxide, HSS-PM, TCB723S

YG-1

No reviews yet Write a Review
SKU:
YG1-TCB723S
$111.96

YG-1 spiral flute tap, 45 degree helix, square shank. HSS-PM, steam oxide finish. Manufacturer part number TCB723S.

Specifications

Unit of Measure
Inch
Overall Length (Decimal)
4.2500
Shank Type
Square
Material
HSS-PM
Coating/Finish
Steam Oxide
Overall Length (Metric)
107.95
Helix Angle
45 degrees
Thread Standard
UNF
Thread Size
3/4-16
Thread Limit
H3
Thread Pitch (TPI)
16
Blank Standard
302A
Square Length (Decimal)
0.6880
Square Length (Metric)
17.48
Square Size (Decimal)
0.4420
Square Size (Metric)
11.23
Thread Length (Decimal)
0.5910
Thread Length (Metric)
15.01
YG-1 Spiral Flute Tap: 3/4-16, H3, Steam Oxide, HSS-PM, TCB723S
$111.96
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
