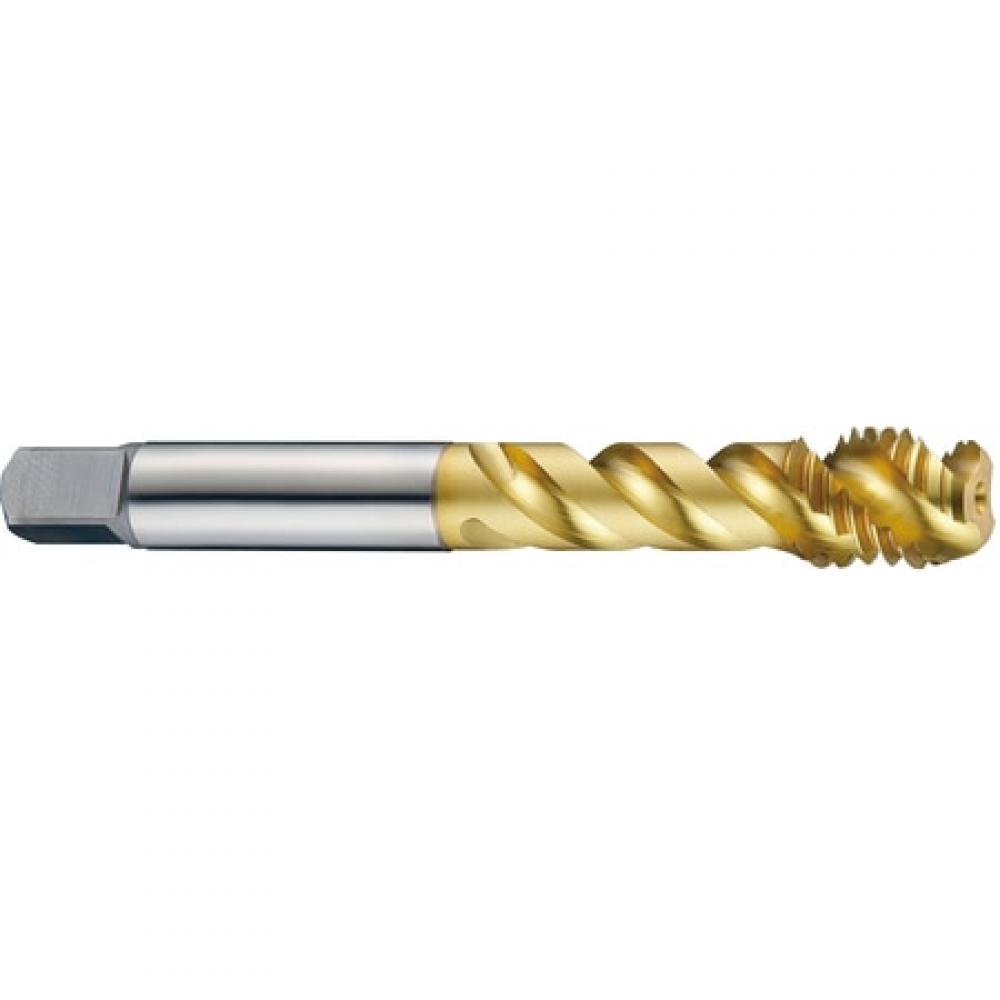

YG-1 Spiral Flute Tap: 3/4-16, H5, TiN, TTS65725

YG-1

No reviews yet Write a Review
SKU:
YG1-TTS65725
$209.53

YG-1 spiral flute tap for steel, stainless steel, cast iron and non-ferrous metals, 45 degree helix, square shank. TiN coating. Manufacturer part number TTS65725.

Specifications

Unit of Measure
Inch
Shank Type
Square
Coating/Finish
TiN
Shank Diameter (Decimal)
0.5900
Shank Diameter (Metric)
14.99
Overall Length (Decimal)
4.2500
Overall Length (Metric)
107.95
Helix Angle
45 degrees
Neck Length (Decimal)
2.4800
Neck Length (Metric)
62.99
Thread Standard
UNF
Thread Size
3/4-16
LxD Ratio
2.5xD
Thread Limit
H5
Thread Pitch (TPI)
16
Chamfer Length
2P-3P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Metric)
17.61
Square Length (Decimal)
0.6900
Square Length (Metric)
17.53
Square Size (Decimal)
0.4420
Square Size (Metric)
11.23
Thread Length (Metric)
15.88
Usable Length (Decimal)
2.4800
Usable Length (Metric)
62.99
YG-1 Spiral Flute Tap: 3/4-16, H5, TiN, TTS65725
$209.53
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
