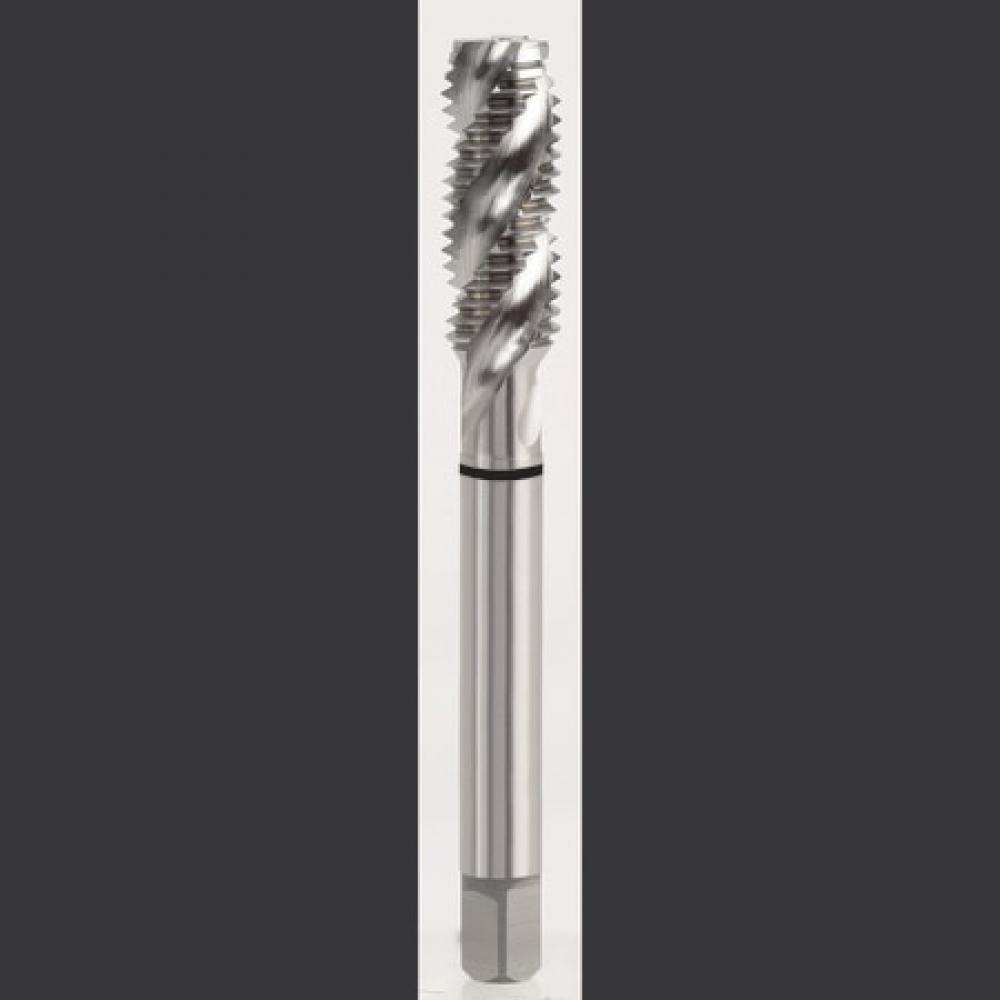

YG-1 Spiral Flute Tap: 3/8-24, H3, Bottoming, 3 Flute, Bright/Uncoated, T7295503

YG-1

No reviews yet Write a Review
SKU:
YG1-T7295503
$23.62

YG-1 spiral flute tap for steel, 50 degree helix, bottoming chamfer, square shank. Bright/uncoated. Manufacturer part number T7295503.

Specifications

Unit of Measure
Inch
Workpiece Material
Steel
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.9370
Coating/Finish
Bright/Uncoated
Shank Diameter (Decimal)
0.3810
Shank Diameter (Metric)
9.68
Overall Length (Metric)
74.60
Helix Angle
50 degrees
Performance Class
General Purpose
Thread Standard
UNF
Thread Size
3/8-24
LxD Ratio
2.5xD
Thread Limit
H3
Chamfer
Bottoming
Thread Pitch (TPI)
24
Blank Standard
302
Chamfer Length
1.5P-2P
Secondary Workpiece Material
Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Decimal)
0.3371
Drill Size (Metric)
8.56
Square Length (Decimal)
0.4400
Square Length (Metric)
11.18
Square Size (Decimal)
0.2860
Square Size (Metric)
7.26
Thread Length (Decimal)
1.2520
Thread Length (Metric)
31.80
Usable Length (Decimal)
1.6460
Usable Length (Metric)
41.81
