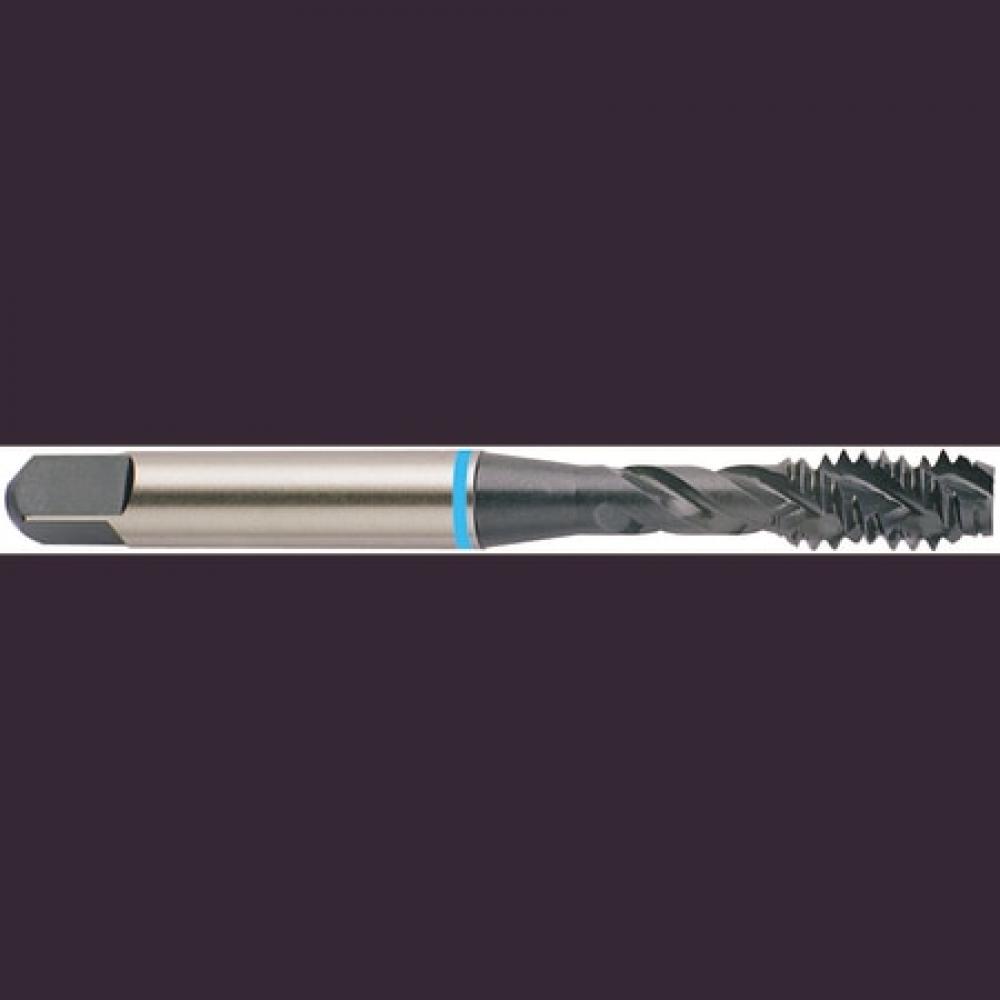

3/8 x 24, H3 3FL SP FL MODI BOTTOM SUPER HSS TAP HARDSLICK COATED

YG-1

No reviews yet Write a Review
SKU:
YG1-BI503
$64.60

Specifications

Unit of Measure
Inch
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.9370
Material
HSS
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.3810
Shank Diameter (Metric)
9.68
Overall Length (Metric)
74.60
Helix Angle
40 degrees
Neck Diameter (Decimal)
0.32
Neck Diameter (Metric)
8.03
Workpiece Material
Steel, Stainless Steel
Thread Standard
UNF
Thread Size
3/8-24
LxD Ratio
2.5xD
Thread Limit
H3
Chamfer
Modified Bottoming
Thread Pitch (TPI)
24
Blank Standard
302A
Chamfer Length
2P-3P
Secondary Workpiece Material
Non-Ferrous
Connection (Metric)
9.68 x 7.26
Drill Size (Decimal)
0.3371
Drill Size (Metric)
8.56
Ring Color
Blue
Square Length (Decimal)
0.4400
Square Length (Metric)
11.18
Square Size (Decimal)
0.2860
Square Size (Metric)
7.26
Thread Length (Decimal)
0.3940
Thread Length (Metric)
10.01
Usable Length (Decimal)
1.2520
Usable Length (Metric)
31.80
3/8 x 24, H3 3FL SP FL MODI BOTTOM SUPER HSS TAP HARDSLICK COATED
$64.60
