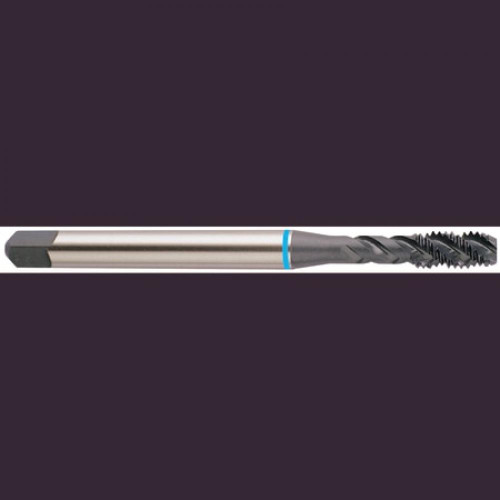

3/8 x 24, H4 3FL SP FL MODI BOTTOM SUPER HSS DIN OAL ANSI SHK HARDSLICK TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-BK504
$78.97

Specifications

Unit of Measure
Inch
Workpiece Material
Steel, Stainless Steel
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
3.9370
Material
HSS
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.3810
Shank Diameter (Metric)
9.68
Overall Length (Metric)
100.00
Helix Angle
40 degrees
Thread Standard
UNF
Thread Size
3/8-24
LxD Ratio
2.5xD
Thread Limit
H4
Chamfer
Modified Bottoming
Thread Pitch (TPI)
24
Blank Standard
DIN/ANSI
Chamfer Length
2P-3P
Secondary Workpiece Material
Non-Ferrous
Drill Size (Decimal)
0.3371
Drill Size (Metric)
8.56
Ring Color
Blue
Square Length (Decimal)
0.4400
Square Length (Metric)
11.18
Square Size (Decimal)
0.2860
Square Size (Metric)
7.26
Thread Length (Decimal)
0.3940
Thread Length (Metric)
10.01
Usable Length (Decimal)
1.2520
Usable Length (Metric)
31.80
3/8 x 24, H4 3FL SP FL MODI BOTTOM SUPER HSS DIN OAL ANSI SHK HARDSLICK TAP
$78.97
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
