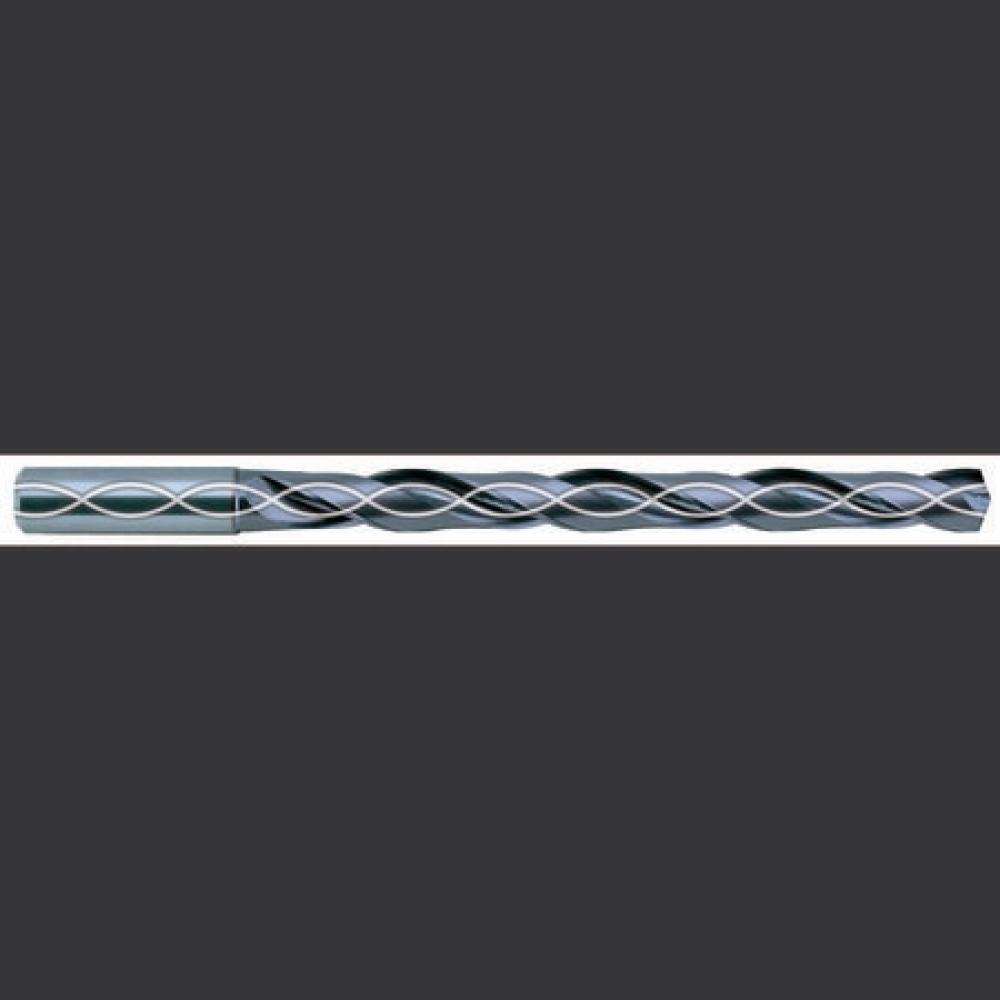

33/64 x 14 x 133 x 178 CARBIDE DREAM DRILL W/ COOLANT (8XD)

YG-1

No reviews yet Write a Review
SKU:
YG1-DH421033F
$644.01

Specifications

Unit of Measure
Metric
Diameter
13.10 mm
Shank Size
14 mm
Overall Length
178 mm
Cutting Direction
Right
Material
Carbide
Shank Diameter (Decimal)
0.56
Shank Diameter (Fractional)
43/78
Overall Length (Decimal)
7.01
Overall Length (Fractional)
7
Helix Angle
30 degrees
Point Angle
140 degrees
Flute Length (Decimal)
5.24
Flute Length (Fractional)
5-13/55
Flute Length
133 mm
Point Length (Decimal)
0.10
Point Length (Metric)
2.38
Length Of Cut
8
Diameter (Decimal)
0.52
Through Coolant
Yes
Workpiece Material
Steel
Diameter (Fractional)
33/64
Drill Point Length (Decimal)
0.10
Drill Point Length (Metric)
2.38
Hole Tolerance
M7
Shank Tolerance
H6
Blank Standard
DIN 6537
33/64 x 14 x 133 x 178 CARBIDE DREAM DRILL W/ COOLANT (8XD)
$644.01
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
