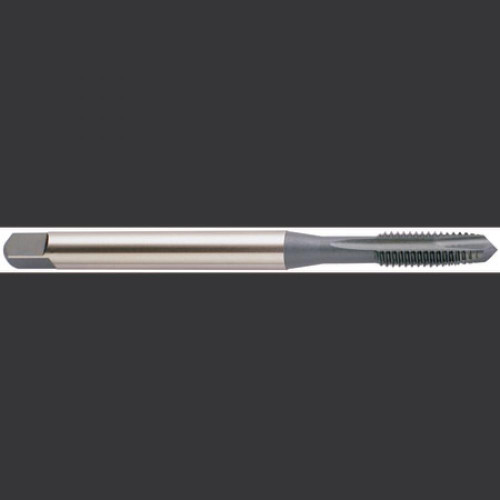

YG-1 Spiral Point Tap: 3/8-24, H3, Plug, 3 Flute, TiN, L4503

YG-1

No reviews yet Write a Review
SKU:
YG1-L4503
$26.75

YG-1 spiral point tap for steel, 3 flutes, plug chamfer, square shank. TiN coating. Manufacturer part number L4503.

Specifications

Unit of Measure
Inch
Workpiece Material
Steel
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.9370
Coating/Finish
TiN
Shank Diameter (Decimal)
0.3810
Shank Diameter (Metric)
9.68
Overall Length (Metric)
74.60
Performance Class
General Purpose
Thread Standard
UNF
Thread Size
3/8-24
LxD Ratio
3xD
Thread Limit
H3
Chamfer
Plug
Thread Pitch (TPI)
24
Blank Standard
DIN/ANSI
Chamfer Length
4P-5P
Secondary Workpiece Material
Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Decimal)
0.3371
Drill Size (Metric)
8.56
Square Length (Decimal)
0.4400
Square Length (Metric)
11.18
Square Size (Decimal)
0.2860
Square Size (Metric)
7.26
Thread Length (Decimal)
0.7480
Thread Length (Metric)
19.00
Usable Length (Decimal)
1.2520
Usable Length (Metric)
31.80
