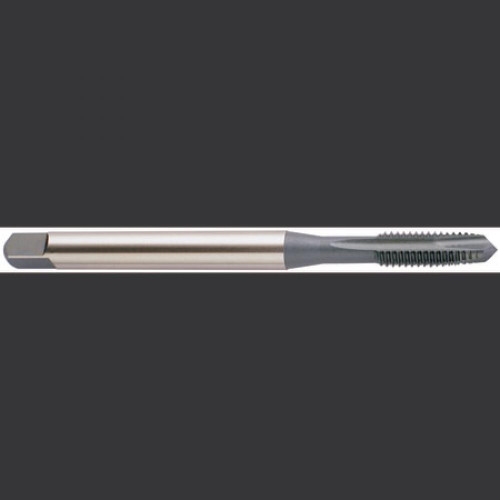

YG-1 Spiral Point Tap: 1/4-28, H3, Plug, 3 Flute, TiN, L4423

YG-1

No reviews yet Write a Review
SKU:
YG1-L4423
$18.51

YG-1 spiral point tap for steel, 3 flutes, plug chamfer, square shank. TiN coating. Manufacturer part number L4423.

Specifications

Unit of Measure
Inch
Workpiece Material
Steel
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.5000
Coating/Finish
TiN
Shank Diameter (Decimal)
0.2550
Shank Diameter (Metric)
6.48
Overall Length (Metric)
63.50
Performance Class
General Purpose
Thread Standard
UNF
Thread Size
1/4-28
LxD Ratio
3xD
Thread Limit
H3
Chamfer
Plug
Thread Pitch (TPI)
28
Blank Standard
DIN/ANSI
Chamfer Length
4P-5P
Secondary Workpiece Material
Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Decimal)
0.2175
Square Length (Decimal)
0.3100
Square Length (Metric)
7.87
Square Size (Decimal)
0.1910
Square Size (Metric)
4.85
Thread Length (Decimal)
0.6260
Thread Length (Metric)
15.90
Usable Length (Decimal)
1.0000
Usable Length (Metric)
25.40
YG-1 Spiral Point Tap: 1/4-28, H3, Plug, 3 Flute, TiN, L4423
$18.51
