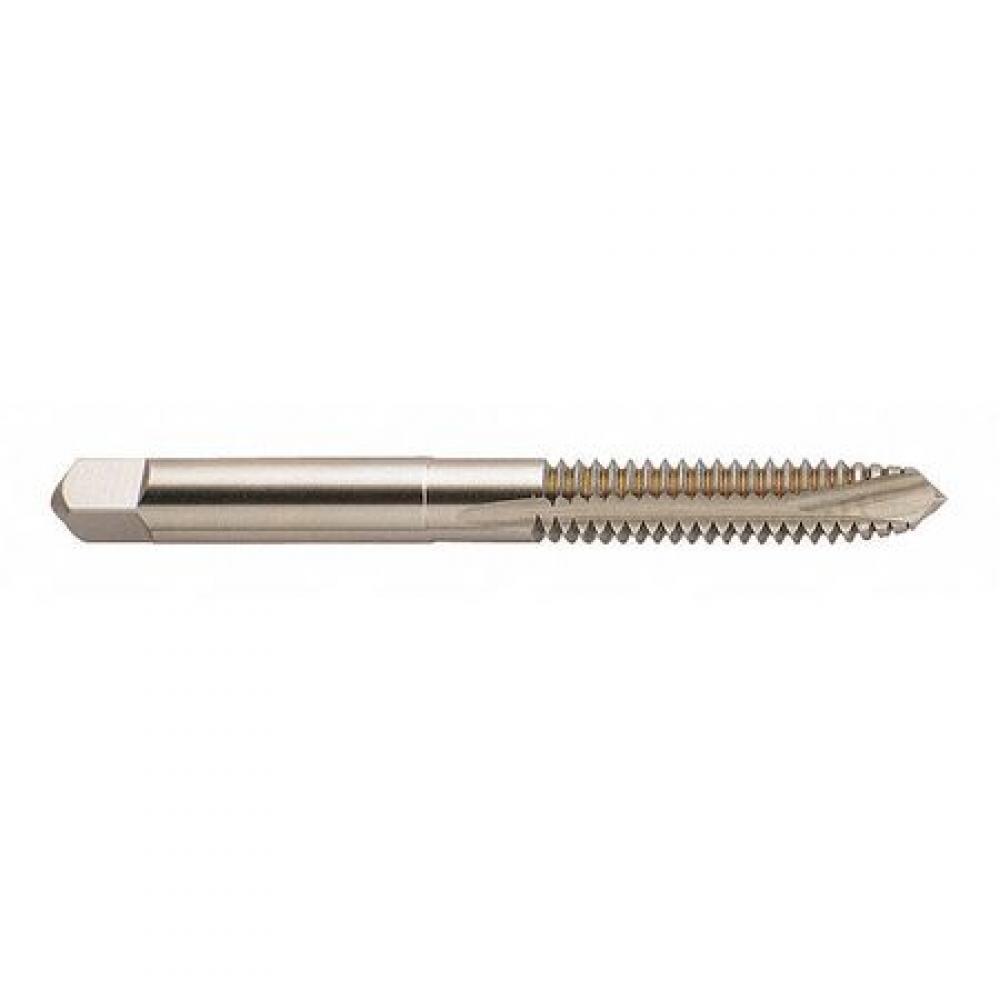

YG-1 Spiral Point Tap: 3/8-24, H3, Plug, 3 Flute, Bright/Uncoated, I1503

YG-1

No reviews yet Write a Review
SKU:
YG1-I1503
$25.27

YG-1 spiral point tap, 3 flutes, plug chamfer, square shank. Bright/uncoated. Manufacturer part number I1503.

Specifications

Unit of Measure
Inch
Overall Length (Decimal)
2.9370
Number of Flutes
3
Shank Type
Square
Coating/Finish
Bright/Uncoated
Shank Diameter (Decimal)
0.3810
Shank Diameter (Metric)
9.68
Overall Length (Metric)
74.60
Thread Standard
UNF
Thread Size
3/8-24
Thread Limit
H3
Chamfer
Plug
Thread Pitch (TPI)
24
Blank Standard
302A
Chamfer Length
4P-5P
Square Length (Decimal)
0.4400
Square Length (Metric)
11.18
Square Size (Decimal)
0.2860
Square Size (Metric)
7.26
Thread Length (Decimal)
0.7480
Thread Length (Metric)
19.00
$25.27
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
