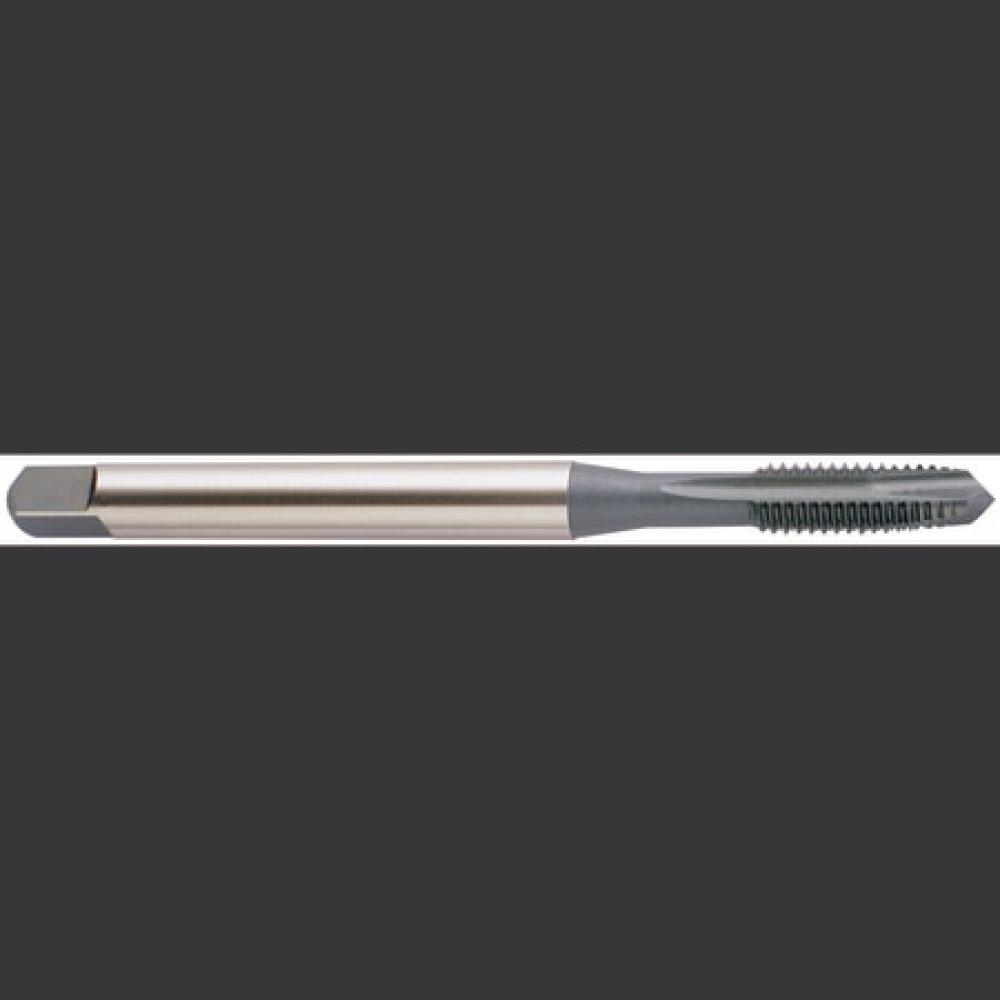

YG-1 Spiral Point Tap: 9/16-18, H3, Plug, 3 Flute, Hardslick, J2623

YG-1

No reviews yet Write a Review
SKU:
YG1-J2623
$84.16

YG-1 spiral point tap for steel and stainless steel, 3 flutes, plug chamfer, square shank. Hardslick coating. Manufacturer part number J2623.

Specifications

Unit of Measure
Inch
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
3.5940
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.4290
Shank Diameter (Metric)
10.90
Overall Length (Metric)
91.29
Workpiece Material
Steel, Stainless Steel
Thread Standard
UNF
Thread Size
9/16-18
LxD Ratio
3xD
Thread Limit
H3
Chamfer
Plug
Thread Pitch (TPI)
18
Blank Standard
302A
Chamfer Length
4P-5P
Secondary Workpiece Material
Non-Ferrous
Drill Size (Metric)
13.00
Square Length (Decimal)
0.5000
Square Length (Metric)
12.70
Square Size (Decimal)
0.3220
Square Size (Metric)
8.18
Thread Length (Decimal)
0.9840
Thread Length (Metric)
24.99
Usable Length (Decimal)
1.6570
Usable Length (Metric)
42.09
$84.16
