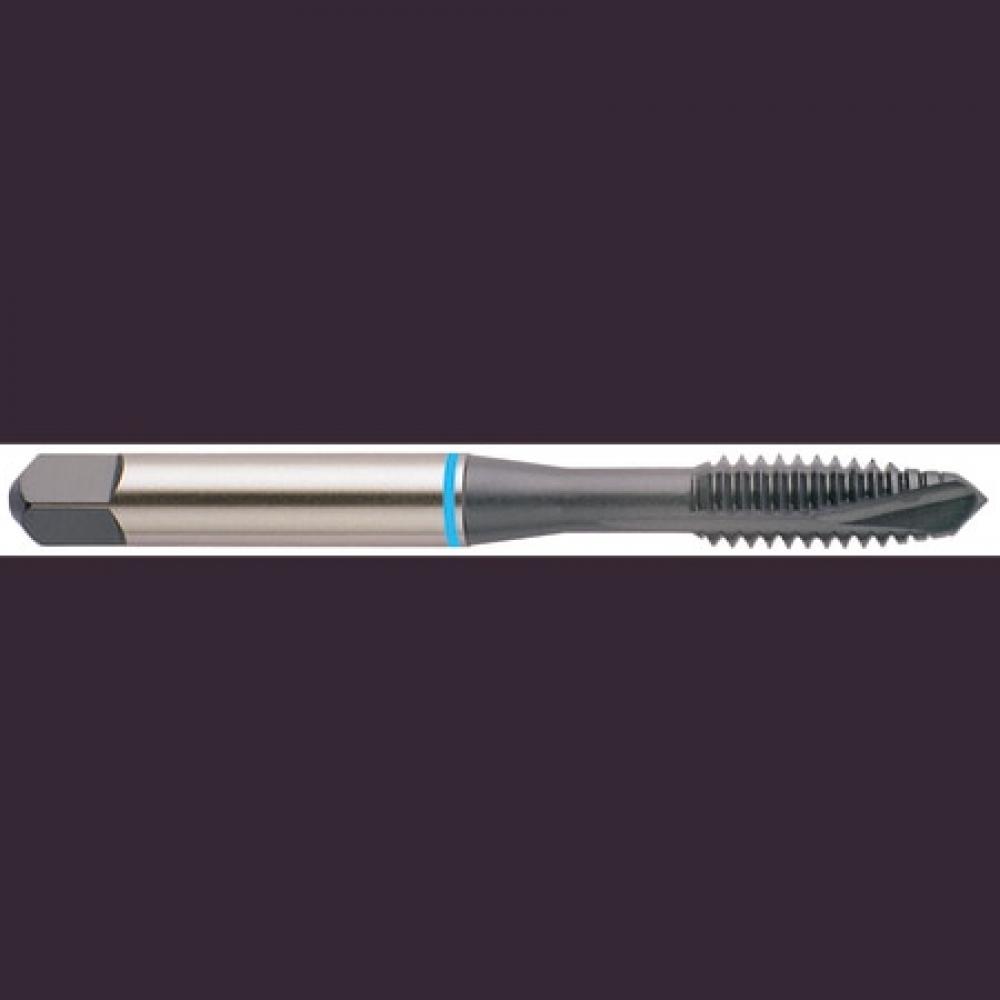

YG-1 Spiral Point Tap: #8-32, H2, Plug, 3 Flute, Hardslick, J2282

YG-1

No reviews yet Write a Review
SKU:
YG1-J2282
$25.84

YG-1 spiral point tap for steel and stainless steel, 3 flutes, plug chamfer, square shank. Hardslick coating. Manufacturer part number J2282.

Specifications

Unit of Measure
Inch
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.1260
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.1680
Shank Diameter (Metric)
4.27
Overall Length (Metric)
54.00
Workpiece Material
Steel, Stainless Steel
Thread Standard
UNC
Thread Size
#8-32
LxD Ratio
3xD
Thread Limit
H2
Chamfer
Plug
Thread Pitch (TPI)
32
Blank Standard
302A
Secondary Workpiece Material
Non-Ferrous
Drill Size (Decimal)
0.1356
Drill Size (Metric)
3.44
Square Length (Decimal)
0.2500
Square Length (Metric)
6.35
Square Size (Decimal)
0.1310
Square Size (Metric)
3.33
Thread Length (Decimal)
0.4530
Thread Length (Metric)
11.51
Usable Length (Decimal)
0.7520
Usable Length (Metric)
19.10
