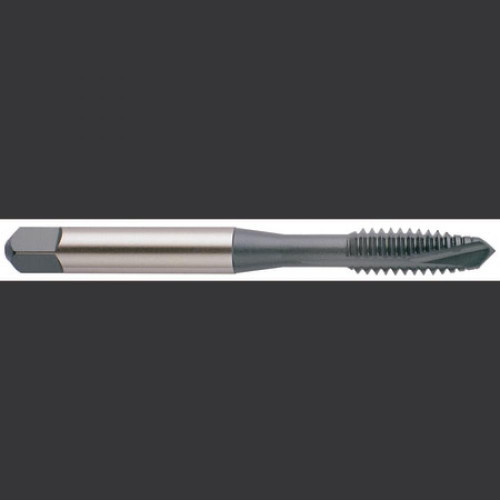

YG-1 Spiral Point Tap: 1/4-20, H3, Plug, 3 Flute, Hardslick, J2403

YG-1

No reviews yet Write a Review
SKU:
YG1-J2403
$28.59

YG-1 spiral point tap for steel and stainless steel, 3 flutes, plug chamfer, square shank. Hardslick coating. Manufacturer part number J2403.

Specifications

Unit of Measure
Inch
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.5000
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.2550
Shank Diameter (Metric)
6.48
Overall Length (Metric)
63.50
Workpiece Material
Steel, Stainless Steel
Thread Standard
UNC
Thread Size
1/4-20
LxD Ratio
3xD
Thread Limit
H3
Chamfer
Plug
Thread Pitch (TPI)
20
Blank Standard
302A
Chamfer Length
4P-5P
Secondary Workpiece Material
Non-Ferrous
Square Length (Decimal)
0.3100
Square Length (Metric)
7.87
Square Size (Decimal)
0.1910
Square Size (Metric)
4.85
Thread Length (Decimal)
0.5910
Thread Length (Metric)
15.01
Usable Length (Decimal)
1.0000
Usable Length (Metric)
25.40
