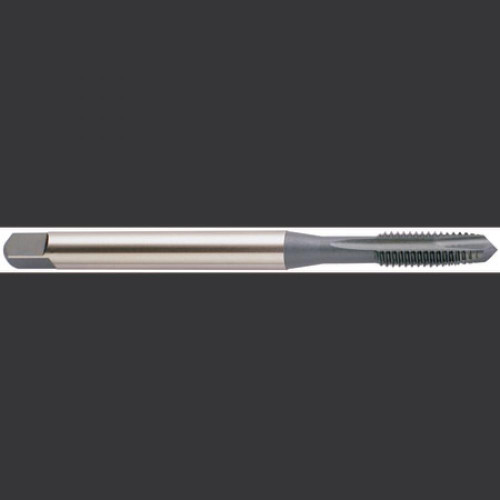

YG-1 Spiral Point Tap: M7 x 1, D5, Plug, 3 Flute, Hardslick, K6345

YG-1

No reviews yet Write a Review
SKU:
YG1-K6345
$39.83

YG-1 spiral point tap for steel and stainless steel, 3 flutes, plug chamfer, square shank. Hardslick coating. Manufacturer part number K6345.

Specifications

Unit of Measure
Metric
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
3.1500
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.3180
Shank Diameter (Metric)
8.08
Overall Length (Metric)
80.01
Workpiece Material
Steel, Stainless Steel
Thread Standard
M
Thread Size
M7 x 1
LxD Ratio
3xD
Thread Limit
D5
Chamfer
Plug
Thread Pitch (mm)
1
Blank Standard
DIN/ANSI
Chamfer Length
4P-5P
Secondary Workpiece Material
Non-Ferrous
Drill Size (Decimal)
0.2398
Drill Size (Metric)
6.09
Square Length (Decimal)
0.3800
Square Length (Metric)
9.65
Square Size (Decimal)
0.2380
Square Size (Metric)
6.05
Thread Length (Decimal)
0.6690
Thread Length (Metric)
16.99
Usable Length (Decimal)
1.1260
Usable Length (Metric)
28.60
YG-1 Spiral Point Tap: M7 x 1, D5, Plug, 3 Flute, Hardslick, K6345
$39.83
