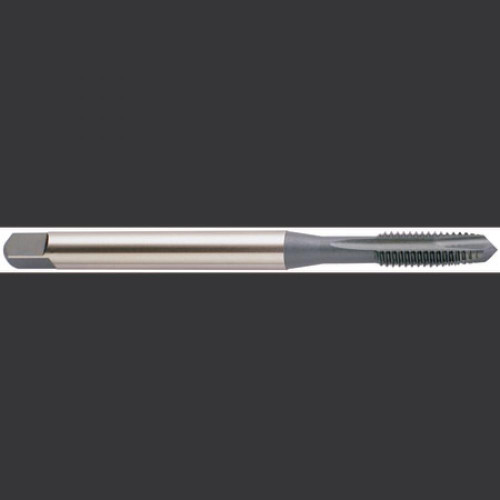

3FL SP PT PLUG SS 20-28RcTICN-COATED

YG-1

No reviews yet Write a Review
SKU:
YG1-K5203
$25.54

Specifications

Unit of Measure
Metric
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.2050
Coating/Finish
TiCN
Shank Diameter (Decimal)
0.1410
Shank Diameter (Metric)
3.58
Overall Length (Metric)
56.01
Workpiece Material
Steel, Stainless Steel
Thread Standard
M
Thread Size
M3 x 0.5
LxD Ratio
3xD
Thread Limit
D3
Chamfer
Plug
Thread Pitch (mm)
0.50
Blank Standard
DIN/ANSI
Chamfer Length
4P-5P
Secondary Workpiece Material
Non-Ferrous
Drill Size (Metric)
2.55
Square Length (Decimal)
0.1900
Square Length (Metric)
4.83
Square Size (Decimal)
0.1100
Square Size (Metric)
2.79
Thread Length (Decimal)
0.3740
Thread Length (Metric)
9.50
Usable Length (Decimal)
0.6460
Usable Length (Metric)
16.41
3FL SP PT PLUG SS 20-28RcTICN-COATED
$25.54
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
