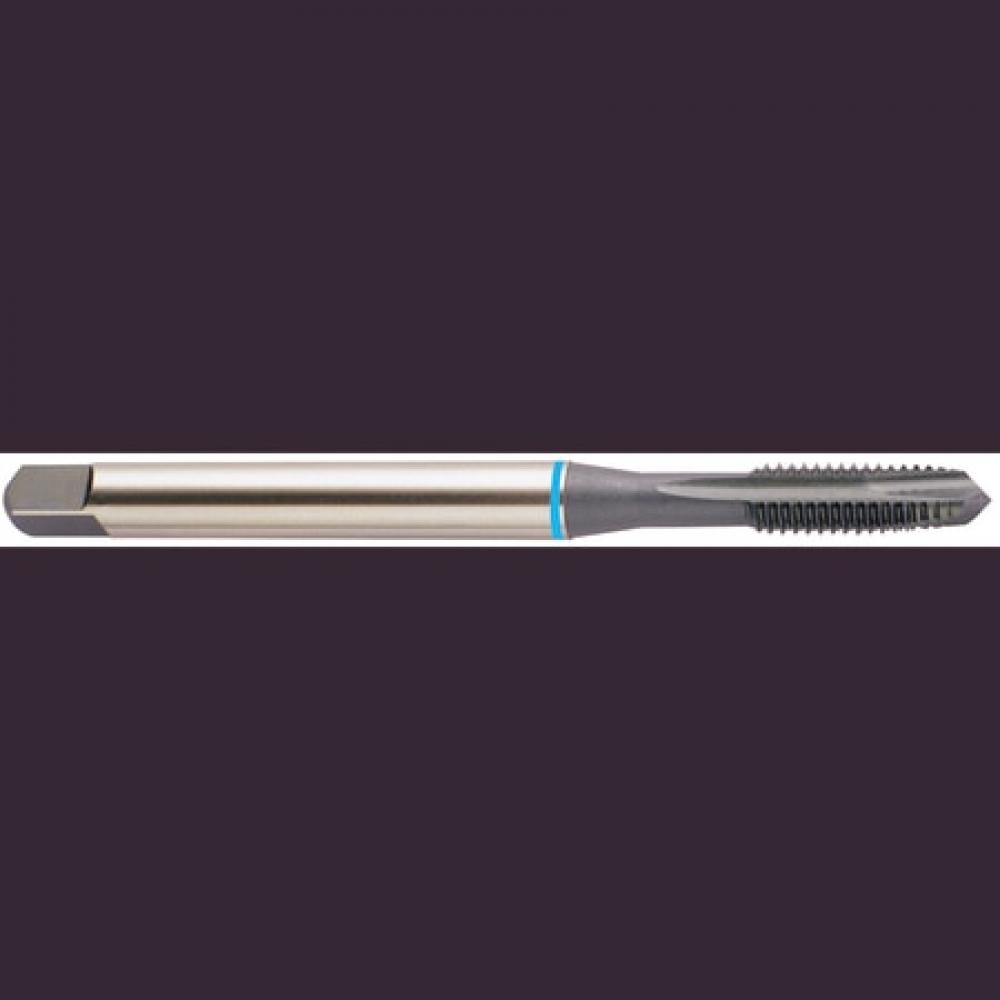

YG-1 Spiral Point Tap: M14 x 1.5, D6, Plug, 3 Flute, Steam Oxide, K3556

YG-1

No reviews yet Write a Review
SKU:
YG1-K3556
$62.15

YG-1 spiral point tap for steel and stainless steel, 3 flutes, plug chamfer, square shank. Steam oxide finish. Manufacturer part number K3556.

Specifications

Unit of Measure
Metric
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
3.9370
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.4290
Shank Diameter (Metric)
10.90
Overall Length (Metric)
100.00
Workpiece Material
Steel, Stainless Steel
Thread Standard
MF
Thread Size
M14 x 1.5
LxD Ratio
3xD
Thread Limit
D6
Chamfer
Plug
Thread Pitch (mm)
1.50
Blank Standard
DIN/ANSI
Chamfer Length
4P-5P
Secondary Workpiece Material
Non-Ferrous
Drill Size (Decimal)
0.4975
Drill Size (Metric)
12.64
Square Length (Decimal)
0.5000
Square Length (Metric)
12.70
Square Size (Decimal)
0.3220
Square Size (Metric)
8.18
Thread Length (Decimal)
0.9840
Thread Length (Metric)
24.99
Usable Length (Decimal)
1.6570
Usable Length (Metric)
42.09
