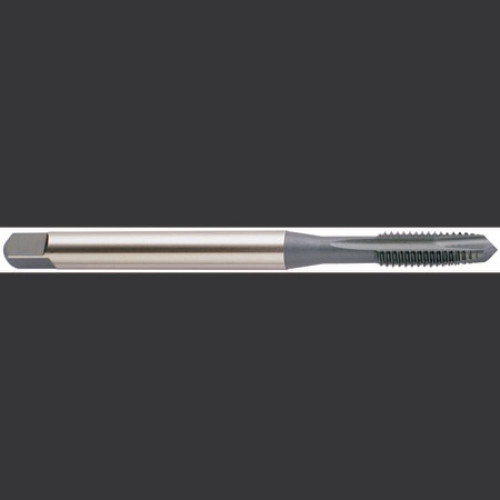

3FL SP PT PLUG SS 28-38Rc STEAM OXIDE

YG-1

No reviews yet Write a Review
SKU:
YG1-J9365
$26.08

Specifications

Unit of Measure
Imperial
Diameter
0.32 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
3.55 Inch
Cutting Direction
Right
Coating/Finish
Oxide
Shank Diameter (Decimal)
0.32
Shank Diameter (Metric)
8.10
Overall Length (Metric)
90
Neck Diameter (Decimal)
0.20
Neck Diameter (Metric)
6.30
Workpiece Material
Steel
Diameter (Metric)
8
Thread Standard
M
Thread Size
M8
Depth Of Cut
3 x D
Thread Limit
D5
Chamfer
Plug
Thread Pitch
1.25
Blank Standard
DIN/ANSI
Chamfer Length
4P-5P
Connection (Decimal)
0.32 x 0.24
Connection (Metric)
8.08 x 6.05
Drill Size (Decimal)
0.28
Drill Size (Metric)
6.86
Square Length (Decimal)
0.38
Square Length (Metric)
9.70
Square Size (Decimal)
0.24
Square Size 2 (Decimal)
0.38
Square Size (Metric)
8.10
Square Size 2 (Metric)
9.70
Thread Length (Decimal)
0.67
Thread Length (Metric)
17
Useable Length (Decimal)
1.13
Useable Length (Metric)
28.60
3FL SP PT PLUG SS 28-38Rc STEAM OXIDE
$26.08
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
