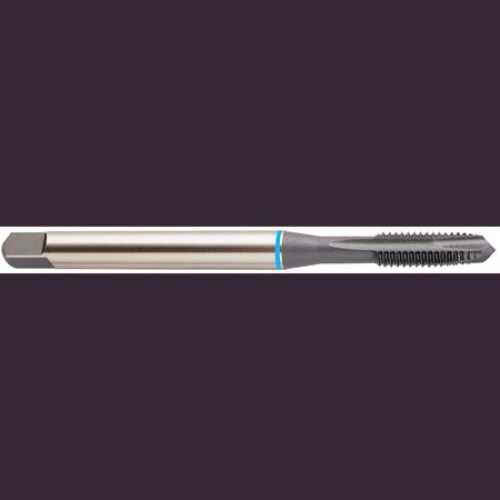

YG-1 Spiral Point Tap: M14 x 2, D7, Plug, 3 Flute, Hardslick, HSS, O3547

YG-1

No reviews yet Write a Review
SKU:
YG1-O3547
$156.91

YG-1 spiral point tap for steel and stainless steel, 3 flutes, plug chamfer, square shank. HSS, Hardslick coating. Manufacturer part number O3547.

Specifications

Unit of Measure
Metric
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
4.3310
Material
HSS
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.4290
Shank Diameter (Metric)
10.90
Overall Length (Metric)
110.01
Workpiece Material
Steel, Stainless Steel
Thread Standard
M
Thread Size
M14 x 2
LxD Ratio
3xD
Thread Limit
D7
Chamfer
Plug
Thread Pitch (mm)
2
Chamfer Length
4P-5P
Secondary Workpiece Material
Non-Ferrous
Drill Size (Decimal)
0.4796
Drill Size (Metric)
12.18
Ring Color
Blue
Square Length (Decimal)
0.5000
Square Length (Metric)
12.70
Square Size (Decimal)
0.3220
Square Size (Metric)
8.18
Thread Length (Decimal)
0.9840
Thread Length (Metric)
24.99
Usable Length (Decimal)
1.6570
Usable Length (Metric)
42.09
YG-1 Spiral Point Tap: M14 x 2, D7, Plug, 3 Flute, Hardslick, HSS, O3547
$156.91
