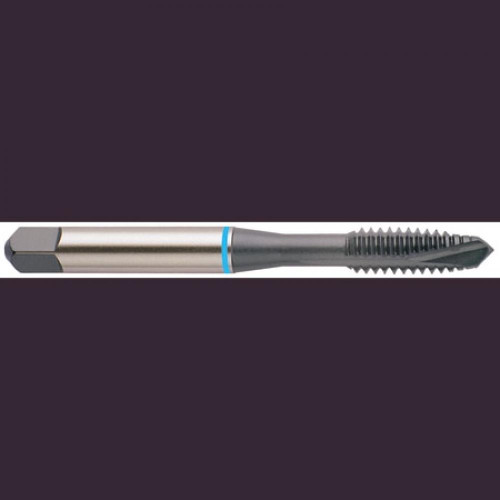

YG-1 Spiral Point Tap: 1/2-20, H5, Plug, 3 Flute, Steam Oxide, HSS, M9585

YG-1

No reviews yet Write a Review
SKU:
YG1-M9585
$56.17

YG-1 spiral point tap for steel and stainless steel, 3 flutes, plug chamfer, square shank. HSS, steam oxide finish. Manufacturer part number M9585.

Specifications

Unit of Measure
Inch
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
3.3740
Material
HSS
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.3670
Shank Diameter (Metric)
9.32
Overall Length (Metric)
85.70
Workpiece Material
Steel, Stainless Steel
Thread Standard
UNF
Thread Size
1/2-20
LxD Ratio
3xD
Thread Limit
H5
Chamfer
Plug
Thread Pitch (TPI)
20
Blank Standard
302A
Chamfer Length
4P-5P
Secondary Workpiece Material
Non-Ferrous
Ring Color
Blue
Square Length (Decimal)
0.4400
Square Length (Metric)
11.18
Square Size (Decimal)
0.2750
Square Size (Metric)
6.99
Thread Length (Decimal)
0.9840
Thread Length (Metric)
24.99
Usable Length (Decimal)
1.6570
Usable Length (Metric)
42.09
