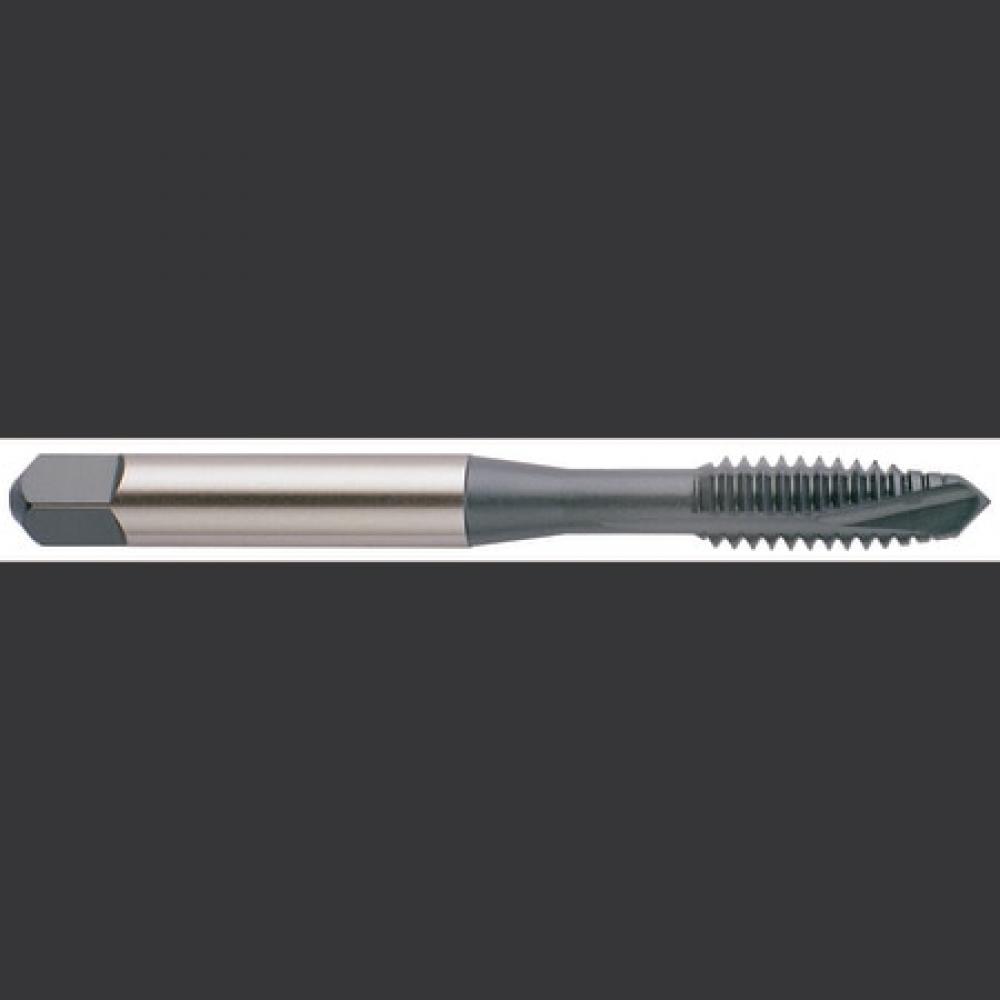

YG-1 Spiral Point Tap: M4 x 0.7, D4, Plug, 3 Flute, Hardslick, IA244

YG-1

No reviews yet Write a Review
SKU:
YG1-IA244
$23.18

YG-1 spiral point tap for steel and stainless steel, 3 flutes, plug chamfer, square shank. Hardslick coating. Manufacturer part number IA244.

Specifications

Unit of Measure
Metric
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.1260
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.1680
Shank Diameter (Metric)
4.27
Overall Length (Metric)
54.00
Workpiece Material
Steel, Stainless Steel
Thread Standard
M
Thread Size
M4 x 0.7
LxD Ratio
3xD
Thread Limit
D4
Chamfer
Plug
Thread Pitch (mm)
0.70
Blank Standard
302A
Chamfer Length
4P-5P
Secondary Workpiece Material
Non-Ferrous
Drill Size (Metric)
3.36
Square Length (Decimal)
0.2500
Square Length (Metric)
6.35
Square Size (Decimal)
0.1310
Square Size (Metric)
3.33
Thread Length (Decimal)
0.2760
Thread Length (Metric)
7.01
Usable Length (Decimal)
0.7680
Usable Length (Metric)
19.51
$23.18
