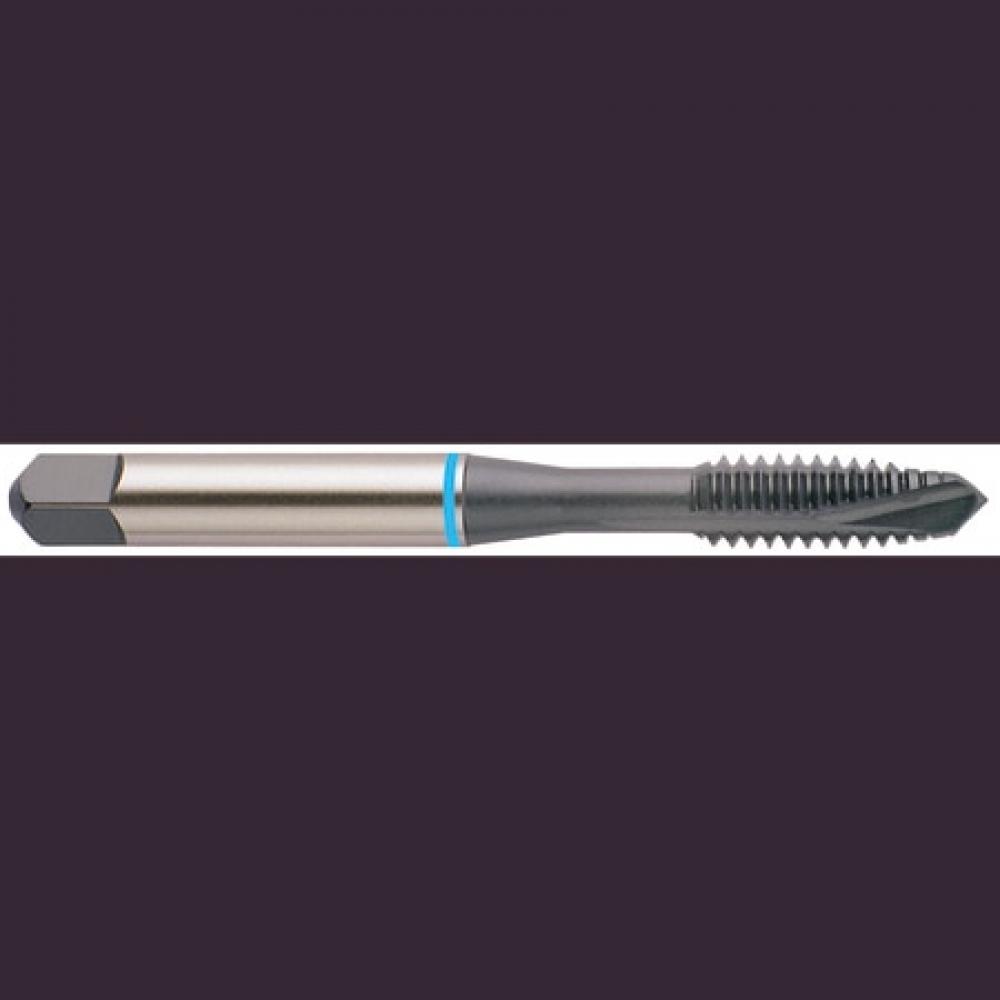

YG-1 Spiral Point Tap: M10 x 1.25, D5, Plug, 3 Flute, Steam Oxide, O9435

YG-1

No reviews yet Write a Review
SKU:
YG1-O9435
$20.09

YG-1 spiral point tap for steel and stainless steel, 3 flutes, plug chamfer, square shank. Steam oxide finish. Manufacturer part number O9435.

Specifications

Unit of Measure
Metric
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.9370
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.3810
Shank Diameter (Metric)
9.68
Overall Length (Metric)
74.60
Workpiece Material
Steel, Stainless Steel
Thread Standard
MF
Thread Size
M10 x 1.25
LxD Ratio
3xD
Thread Limit
D5
Chamfer
Plug
Thread Pitch (mm)
1.25
Blank Standard
302A
Chamfer Length
4P-5P
Secondary Workpiece Material
Non-Ferrous
Drill Size (Decimal)
0.3490
Drill Size (Metric)
8.86
Square Length (Decimal)
0.4400
Square Length (Metric)
11.18
Square Size (Decimal)
0.2860
Square Size (Metric)
7.26
Thread Length (Decimal)
0.4720
Thread Length (Metric)
11.99
Usable Length (Decimal)
1.2520
Usable Length (Metric)
31.80
